ISO 12233 Enhanced Digital Camera Resolution Test Chart (6000 LW/PH)

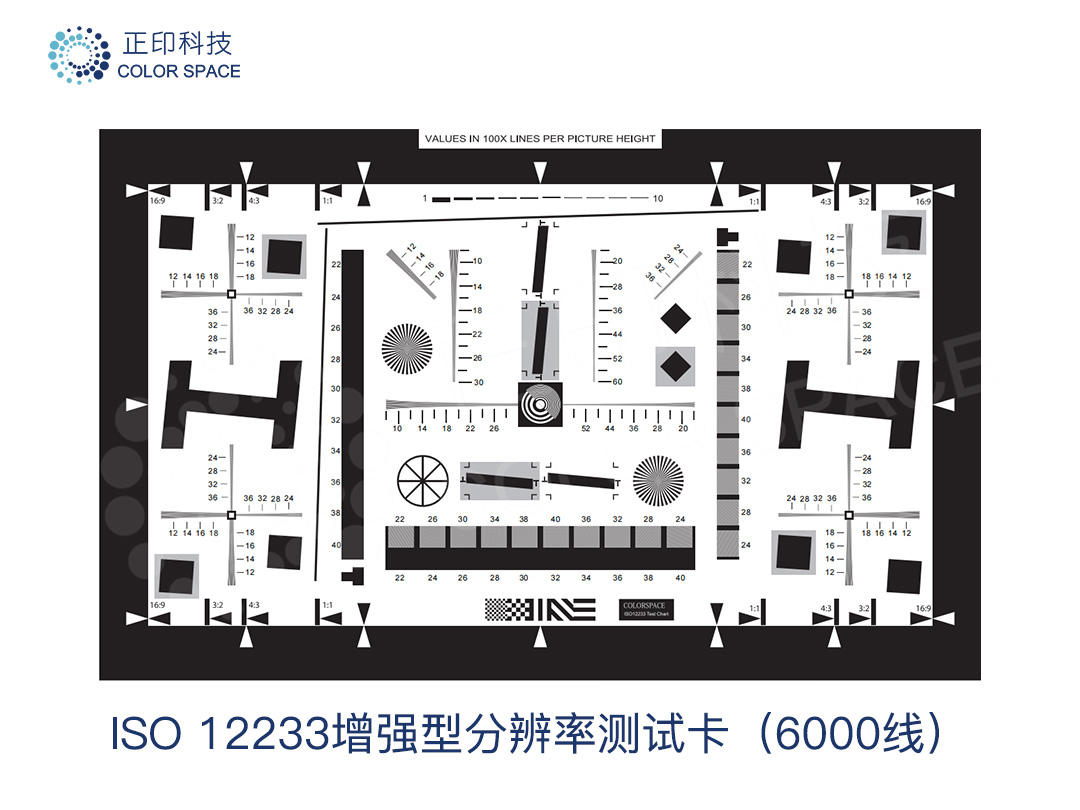

The ISO 12233 Enhanced Digital Camera Resolution Test Chart (6000 LW/PH) is manufactured in strict accordance with the ISO 12233:2000 standard and is specifically designed for evaluating the resolution performance of digital cameras, imaging systems, and optical devices.

Featuring precision-engineered resolution wedges, line-pair patterns, and other functional test elements, the chart enables accurate resolution measurements from 800 to 6000 lines per picture height (LW/PH). The central test area supports measurements up to 6000 LW/PH, while the peripheral regions support measurements up to 4000 LW/PH, allowing comprehensive evaluation of both center and edge image quality.

Available in multiple sizes, the chart accommodates a wide range of testing requirements, from compact lens laboratories and camera module development to large-scale optical imaging system evaluation.

Key Features

In addition to all the features of the standard ISO 12233 resolution chart, the enhanced version incorporates several advanced test elements, including:

• Siemens Star target for visual resolution assessment
• 5° slanted-edge (e-SFR) structures for SFR and MTF analysis
• Resolution measurement capability up to 6000 LW/PH
• Precision resolution wedges and line-pair patterns
• Suitable for digital cameras, industrial cameras, machine vision systems, and optical imaging devices

The chart provides a comprehensive solution for resolution characterization, image sharpness evaluation, and imaging performance analysis.

Enhanced Test Features

Specifications

【Reserve a Lab】For more information about related products and testing services, please contact：sales@colorspace.com.cn
