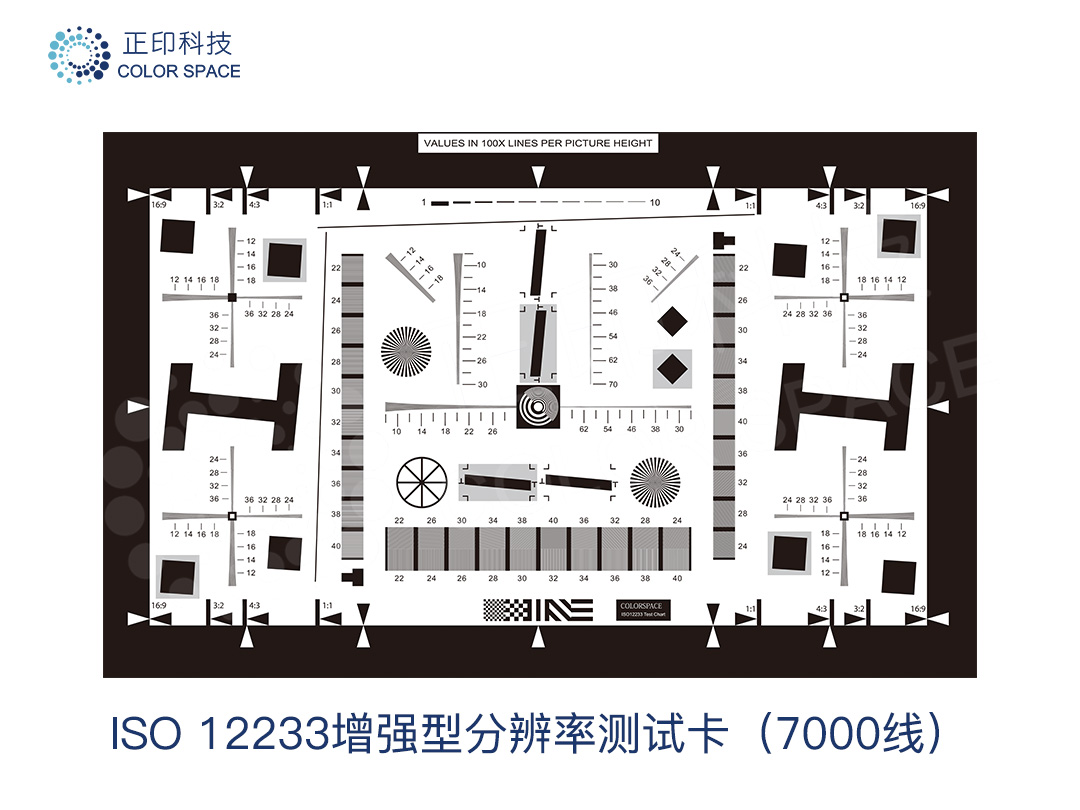

ISO 12233 Enhanced Digital Camera Resolution Test Chart (7000 LW/PH)

The ISO 12233 Enhanced Digital Camera Resolution Test Chart (7000 LW/PH) is designed and manufactured in accordance with ISO 12233:2000 for evaluating the resolution performance and image quality of digital cameras, industrial cameras, machine vision systems, and optical imaging devices.

The chart incorporates precision resolution wedges, line-pair patterns, and multiple standard test elements, enabling accurate resolution measurements from 800 to 7000 lines per picture height (LW/PH). The central test area supports measurements up to 7000 LW/PH, while the peripheral regions support measurements up to 4000 LW/PH, allowing comprehensive evaluation of image quality across the entire field of view.

Available in multiple sizes, the chart is suitable for lens development laboratories, camera module testing, machine vision inspection, and large-scale optical system characterization.

Key Features

In addition to all the features of the standard ISO 12233 resolution chart, the enhanced version incorporates several advanced test elements, including:

• Siemens Star target for visual resolution assessment
• 5° slanted-edge (e-SFR) structures for SFR and MTF analysis
• Resolution measurement capability up to 7000 LW/PH
• Precision resolution wedges and line-pair patterns
• Suitable for digital cameras, industrial cameras, machine vision systems, and optical imaging devices

The chart provides a comprehensive solution for resolution characterization, image sharpness evaluation, and imaging performance analysis.

Enhanced Test Features

Specifications
