Color Test Charts

ChromaMatch Vista Std

Brand：DSC Labs
Model：CS-CMVStd(89)
Product description: DSC ChromaMatch charts combine ChromaDuMonde colors and grayscale for precise camera calibration. Ideal for lab, studio, field, and post-production use.
INQUIRY

ChromaMatch Vista Std

The ChromaMatch intuitive visual matching feature uses traditional ChromaDuMonde® colors and grayscales, producing familiar, easily interpreted waveform monitor and vectorscope displays.

ChromaMatch charts are designed and built to the highest quality standards. Mounted on sturdy aluminum backing with a flexible protective edging, every ChromaMatch is individually checked, calibrated, and rechecked.

The DSC ChromaMatch^® Precision Colors and Grayscale Story

ChromaMatch patterns were originally designed to work with ScreenAlign calibration System.

Film studios and broadcasters soon discovered the ChromaMatch benefits of superb, consistent image quality.

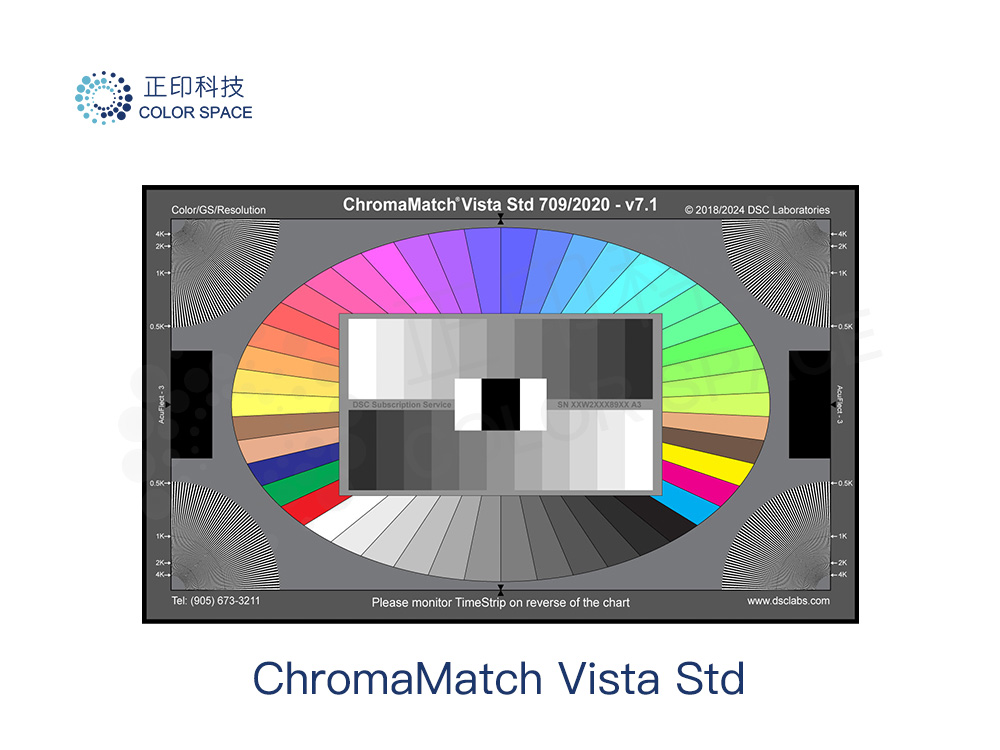

ChromaMatch Vista Standard_DSC

Details:
· Six Vector Colors
· 18 intermediate ChromaDuMonde colors
· 4 Skin tone colors
· Six wide gamut colors
· DSC 11-step crossed grayscale
· Corner resolution fans available in 2K, 4K and 8K according to the size of chart
· 100 IRE white and true black chips
· 18% grayscale background

ChromaDuMonde, ChromaMatch and CamAligns are now used:

· In the Lab – camera evaluation and testing
· In the Studio – to set up and match cameras
· On the Set – as a production standard
· In Post Production – to optimize image quality

CamAligns Can Help You:

· Shoot richer-looking Pictures
· Optimize tonal reproduction
· Make blacker blacks
· Provide neutral shadow details
· Use rain or shine, even underwater

Specifications：

Model	Size
CS-CMVStd(89)-JW	17''×10''（43.18 cm × 25.4 cm）
CS-CMVStd(89)-SXW	51.5''×30.5''（60.69 cm × 37.34 cm）
CS-CMVStd(89)-SRW	24''×14.7''（60.96 cm × 37.34 cm）
CS-CMVStd(89)-XW	40''×24''（101.6 cm × 60.96 cm）
