Grayscale Test Charts

ColorBar GrayScale with Resolution

Brand：DSC Labs
Model:CS-CGR(4)
Product description: Resolution test charts with 6 vector colors, 11-step grayscale, and up to 800 TVL wedges. Ideal for image system evaluation. Multiple sizes, 16:9 framing.
INQUIRY

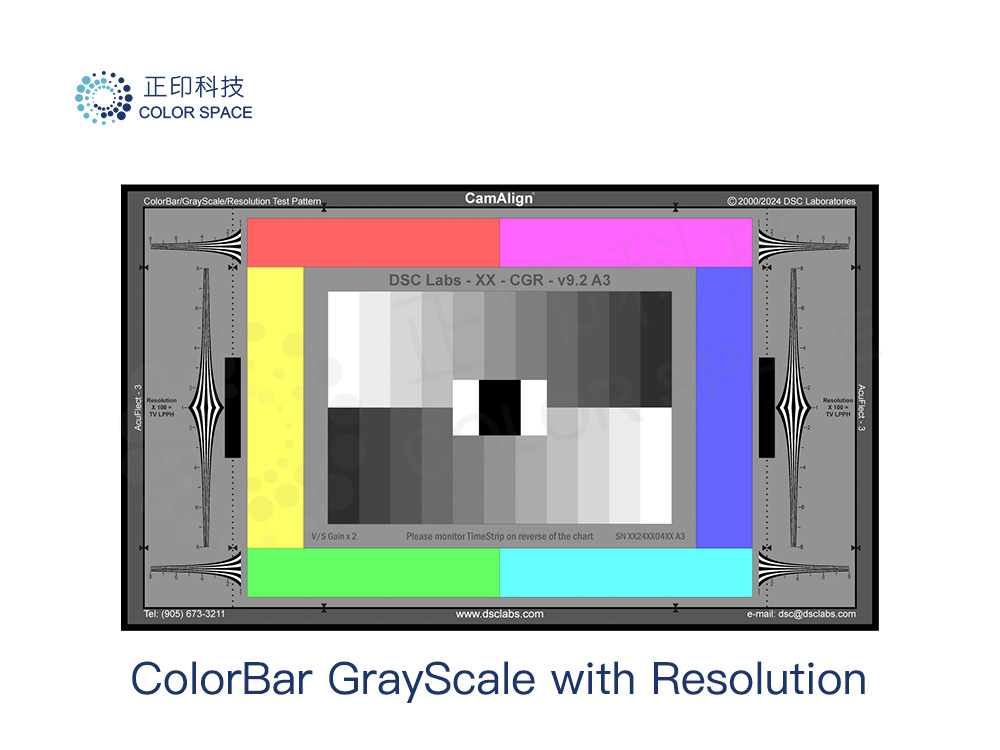

ColorBar GrayScale with Resolution

The ColorBar/GrayScale with Resolution chart combines color, grayscale, and resolution targets for comprehensive imaging system evaluation, including color reproduction, tonal response, sharpness, and framing assistance.

Key Features:

· Six Vector Colors

· DSC 11-step crossed grayscales

· 100 IRE white and true black chips

· Hyperbolic resolution wedges to 800 TV LPPH

· 16:9 (1.78) framing bowties and 90% of 1.85.

Specifications:

Model	Size
CS-CGR(4)-JW	17×10''（43.18 cm × 25.4 cm）
CS-CGR(4)-SW	21.3×13''（54.10 cm × 33.02 cm）
CS-CGR(4)-SRW	24×14.7''（60.96 cm × 37.34 cm）
CS-CGR(4)-XW	40×24''（101.6 cm × 60.96 cm）
CS-CGR(4)-SXW	51.5×30.5''（130.81cm×77.47cm）
