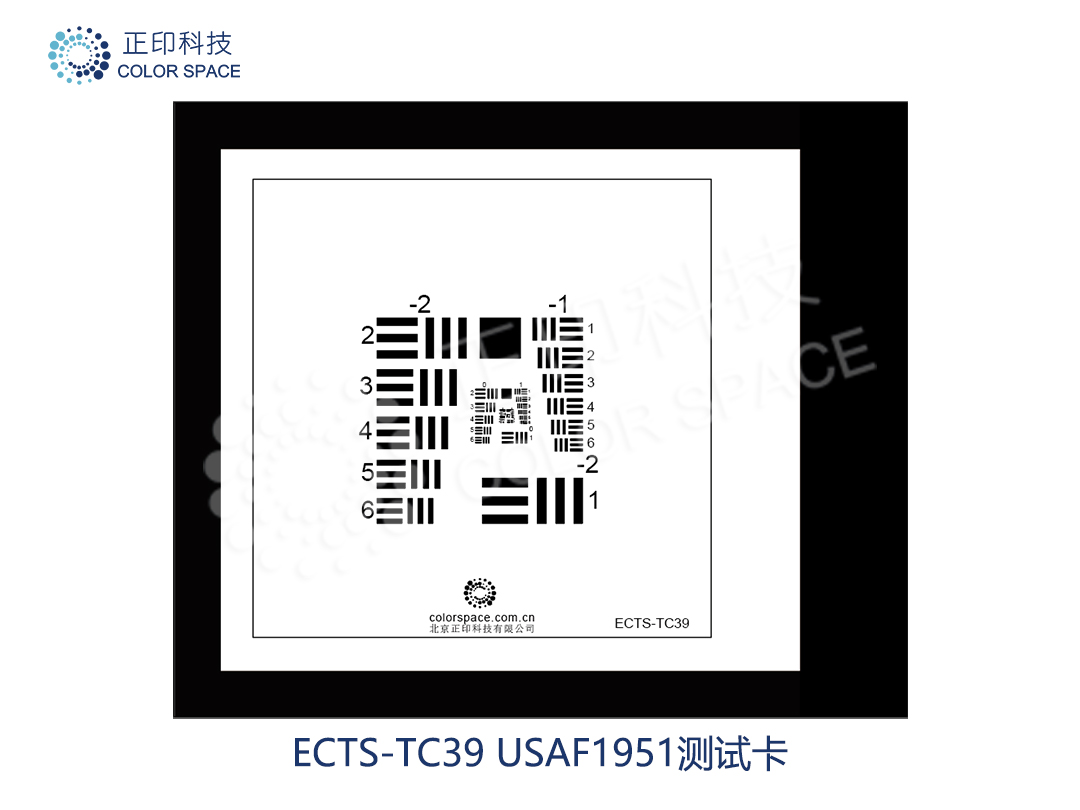

CS-ECTS-TC39 Endoscope USAF 1951 Resolution Test Chart

CS-ECTS-TC39 Endoscope USAF 1951 Resolution Test Chart is designed for endoscope image quality testing. Developed by ColorSpace for medical and industrial endoscope imaging systems, the CS-ECTS-TC series provides standardized test charts for engineering evaluation.
The CS-ECTS-TC39 USAF 1951 Resolution Test Chart is based on MIL-STD-150A and is suitable for endoscope image quality assessment and engineering testing.

Solution

The CS-ECTS-TC39 adopts the USAF 1951 resolution target structure.Through standardized line-pair groups, it enables visual evaluation of the resolution performance of endoscope imaging systems.This test chart complies with the requirements of MIL-STD-150A and is suitable for R&D validation, incoming inspection, and production line sampling.

* Note: This product is not a test chart specified in the YY0068.1 standard and is intended for engineering and quality testing applications.

Test Chart Specifications

Applications

· R&D and validation of medical endoscope imaging systems

· Resolution and image clarity evaluation for industrial endoscopes

· Incoming inspection and outgoing quality control in endoscope production lines

· Reference for imaging algorithms and ISP parameter tuning
