Lens and Image Sensor Test Equipment

Compact High-Precision Infrared MTF Measurement System

Brand: Trioptics
Model：ImageMaster® HR MAX IR
Product description: ImageMaster® HR MAX IR – Compact and High-Precision Infrared MTF Tester for the Development and Production of Small-Aperture Lenses in the VIS, MWIR, and LWIR Spectral Ranges. Fully Automated Script C
INQUIRY

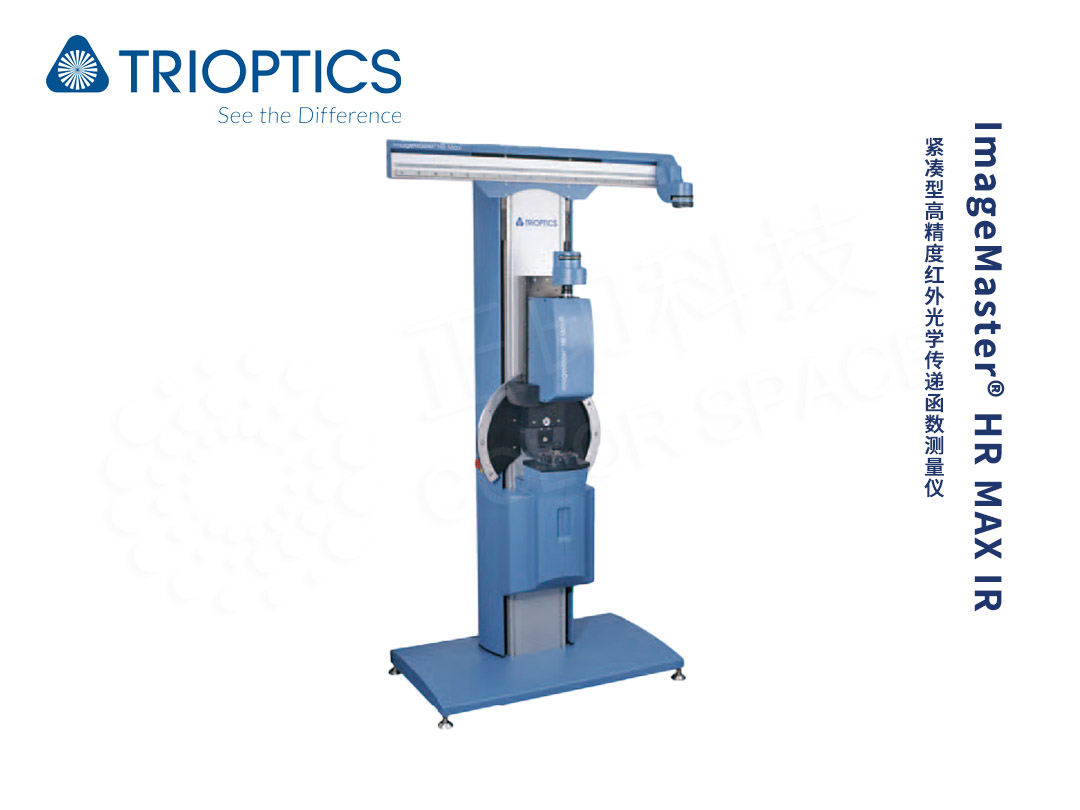

ImageMaster® HR MAX IR Compact High-Precision Infrared MTF Measurement System

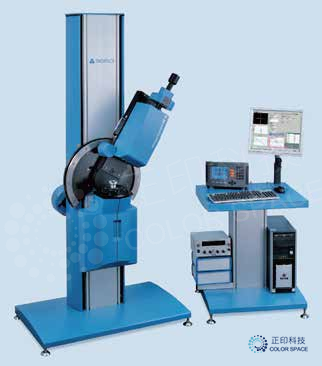

Designed by TRIOPTICS Germany, the ImageMaster® HR MAX IR is an advanced infrared MTF measurement instrument based on the ImageMaster® HR platform. It is ideal for high-precision development and small batch production of visible and infrared lenses with small apertures.

Key Features：

· Vertical setup with fully automated measurement

· Supports small-aperture lenses in the visible and infrared spectrum

· Equipped with a 2D infrared focal plane array detector

· Compact, integrated structure for easy maintenance

· Fully automated target generator

· Measurement accuracy traceable to international standards

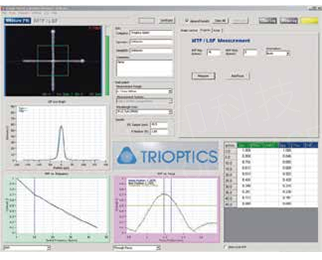

· Modular software with intuitive interface

· Customizable measurements via editable scripting

· Measurement results directly exportable as reports

Measurable Parameters：

· On-axis MTF	· Off-axis MTF	· Defocused MTF	· Effective Focal Length
· Phase Transfer Function	· Line Spread Function	· Point Spread Function	· Chief Ray Angle
· Relative Transmittance	· Relative Illumination	· Field of View	· Distortion
· Astigmatism	· Chromatic Aberration	· Depth of Focus	· Field Curvature
