ImageMaster® PRO ST

Brand: Trioptics
Model：ImageMaster® PRO ST
Product description: ImageMaster® PRO ST is an industrial-grade OTF tester optimized for mass production MTF measurement of smartphone telephoto lenses. Supports up to 200 virtual cameras, precise defocus control, and nea
INQUIRY

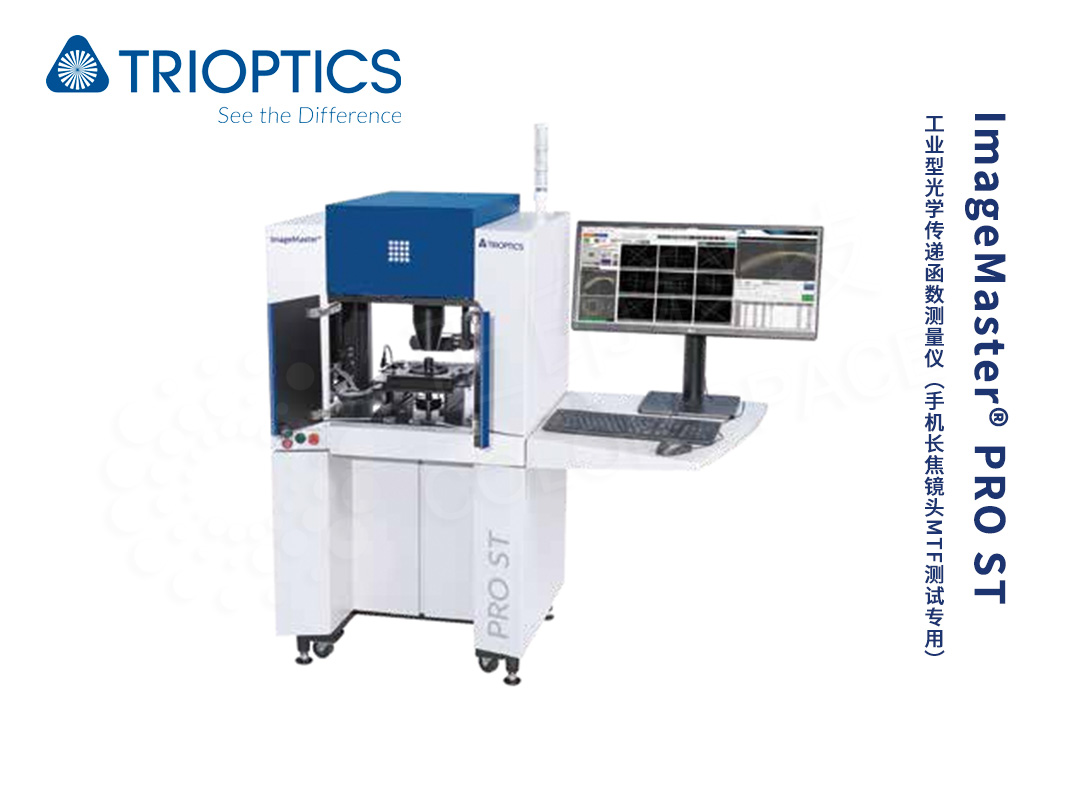

ImageMaster® PRO ST Industrial Optical Transfer Function (OTF) Measurement System | Specialized for MTF Testing of Smartphone Telephoto Lenses

Manufactured by TRIOPTICS Germany, the ImageMaster® PRO ST is a dedicated system for high-throughput measurement of MTF and other optical parameters of telephoto lenses used in smartphones. It is optimized for testing samples with long effective focal lengths under narrow field-of-view (FOV) conditions.

Key Features：

* Specifically designed for near-infrared (NIR) measurements
* Up to 200 virtual cameras, replacing the need for a physical single camera
* High-precision defocus (field curvature) control* Flexible measurement point selection across the sample
* Optimized for small FOV lenses, supporting full fields up to 24°
* Measurement of samples with focal lengths from 10 mm to 35 mm, using a 100 mm effective focal length telescope

* Single telescope setup enables dense measurement point coverage across the entire field, with simplified configuration

Product Models & Technical Specifications：

Model	ImageMaster®PRO ST
Device Type	Floor-standing
Optical Configuration	Infinite conjugate
Maximum Spatial Frequency	125 lp/mm
On-Axis MTF Accuracy	2.0% MTF（up to 200 lp/mm）①
Off-Axis MTF Accuracy	3.0% MTF（up to 200 lp/mm）①
Effective Focal Length Accuracy	0.2%
On-Axis Measurement Time	1.8s ②
Off-Axis Full Curve Measurement Time	1.8s
Throughput	2000 UPH (units per hour)
Measurement Points	>99 (50 field positions / camera) ②
Dimensions (H × W × D)	1570mm × 1340mm × 810mm
Weight	240kg
Sample Tray Size	150mm×150mm
Sample Mounting Platform	3-point motion tray with certified flatness reference
Sample Quality Grading	Up to 4 levels
Light Source	Halogen (white LED optional)
Filters	Visible (optional NIR); standard photopic filters supported
ACM	Integrated autocollimator
