Flash test system

Product description: The flash test system can analyze the pre-flash illuminance, main flash illuminance, estimated time, and uniformity of the flash. This system contains 9 calibrated high-precision detectors, which can
INQUIRY

The ColorSpace CS-FTS Flash Test System is engineered to evaluate critical performance parameters of flash lighting systems, including pre-flash and main flash illuminance, pre-flash and main flash durations, and uniformity. It supports both flash pulse and continuous torch modes, catering to diverse testing requirements.

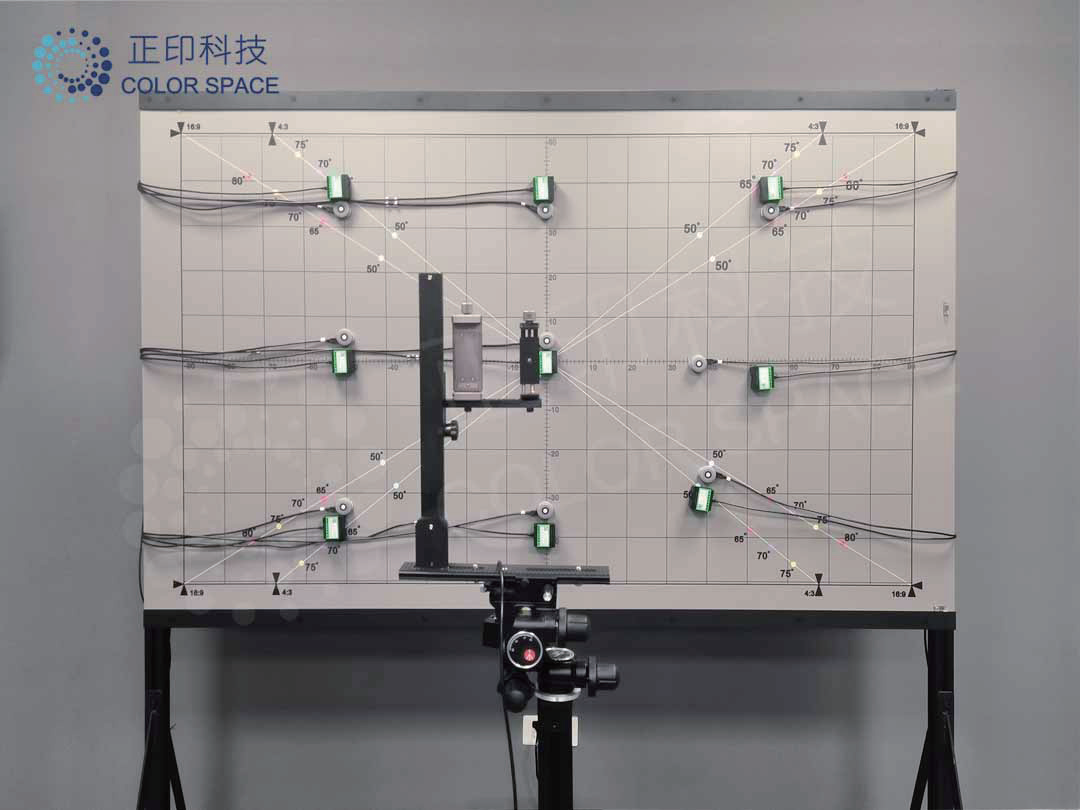

Equipped with nine high-precision, calibrated detectors, the system offers flexible installation options: magnetic mounting on a neutral gray backboard or secure attachment to a dedicated fixture designed by ColorSpace. This configuration ensures adaptability for various LED flash testing scenarios. The system's modular design allows for expansion beyond the standard nine sensors to accommodate more complex testing needs.

Product description:

· Illuminance Detectors	· 18% Gray Reference Panel	· Control & Analysis Software
· Color Temperature Detector (optional)	· Adjustable Guide-Rail Mounting Bracket	· Remote Shutter Release (for image capture)

Parameter introduction:

Parameters	CS-FTS Flash Test System Parameters
Overall Dimensions （LWH）	1990 * 2000 * 2031 mm
Mobile Rail Travel	1600 mm（adjusts distance between test device and back panel to accommodate different fields of view）
Pan‑Tilt Range	Full three‑axis rotational adjustment supported
Illuminance Sensors (Standard Configuration)	Sensor Type	High‑precision CCD (alternative sensor types available)
	Quantity	9 units (customizable)
	Measurement Range	0.1 ~ 10Klux
	Frequency Range	50 ~ 1000Hz
	Integration Time	1 ms ~ 1000 ms
	Power Supply	USB
Color-Temperature Sensors (Optional)	Sensor Type	High-precision CCD (optional)
	Measurement Range	2000 K~ 10000K（optional ）
	Quantity	9 units (customizable)
	Power Supply	USB
Flash Back Panel	Type	Neutral-Gray Reference Panel with graduated crosshair markings (both 4:3 and 16:9 diagonals)
	Panel Size	1181 * 2000 mm
	Center Height	1400 mm
Communication Interface	Micro USB
Software	USB-controlled application for camera or tablet capture, flash-uniformity testing, data analysis and result export

Measurable parameters with software:

· The light distribution of the flash (standard 9-point detection, multi-point distribution test)
· Main flash illuminance
· Pre-flash illuminance
· Main flash time
· Pre-flash time
· Uniformity polygonal graph (polyline distribution graph)
· Uniformity of histogram
· Form information (form distribution map)
· Ambient light correction function
