Light Booth

LEDView

Brand: Thouslite
Model: LEDView
Product description: LEDView — Lighting Cabinet Innovative standard lighting cabinet based on multi-channel LED technology, guarantees “What You See is What You Measure"
INQUIRY

LEDView — Lighting Cabinet Overview：

Innovative standard lighting cabinet based on multi-channel LED technology, guarantees “What You See is What You Measure"

1. Reproducing high quality daylight illuminant

To reproduce any phase of daylight with highest quality on the market in terms of Color Rendering Index (CIE Ra) 99 and Metamerism Index (MI) Grade A

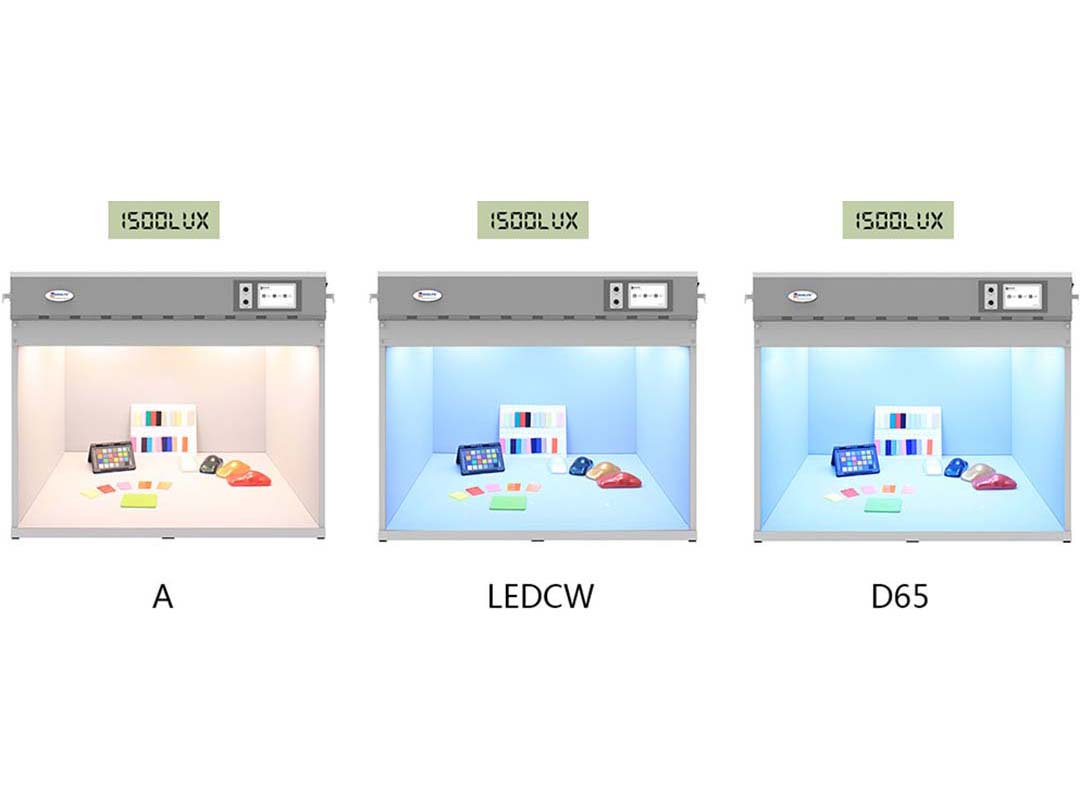

2. Same light intensity for all LED simulated sources

All the simulated illuminants sources can have the same light intensity, or customer specified

3. Flicker free and high uniformity

It provides a uniform and flicker free lighting environment

4. Longer life time and excellent long term stability

Much longer lifetime compared to fluorescent technology, and optimized heat management guarantees excellent long term stability

5. Single-channel control (except LEDView-12)

Arbitrarily control the intensity of each channel in LEDView to design any light wanted

6. Dynamic lighting (except LEDView-12)

Programmable illuminant light sequence and interval

7. Fast & accurate feedback (except LEDView-12)

Maintain the same light quality, compensating for age and variable environments with external micro-spectrometer

Specification

Model	LEDView-Portable	LEDView-C15	LEDView-114	LEDView-H11
LED Channels	12 channel	15 channel	14 channel	11 channel
Spectral range	370-700nm	350-700nm	380-730nm	400-700nm
LED channel driving method	Amplitude modulation
Resolution	10 bit (1024 steps dimmable for each channel)
Warm-up time	No
LED life	>8,000 hours	>12,000 hours
LED simulated source amount	80	The hardware can store 80 name editable light sources, which can be switch through the control box.
LED simulated source options	Daylight Options (Exclude UV): D50, CIE Ra 98 Mlvis: B D65, CIE Ra 98 Mlvis: B (Default) D75, CIE Ra 98 Mlvis: B Others: Ultraviolet (Default) Illuminant A: Cie Ra>97 (Default) LED warm white (Default) LED cool white (Default) Or custom specify	Daylight Options (Exclude UV): D50, CIE Ra 99 Mlvis: B (Default) D65, CIE Ra 99 Mlvis: B (Default) D75, CIE Ra 99 Mlvis: B (Default) Others: Ultraviolet (Default) Illuminant A: Cie Ra>97 (Default) LED warm white (Default) LED cool white (Default) Or custom specify Sources stored in the hardware can be reprogrammed by software LEDNavigator-LV	Daylight Options (Exclude UV): D50, CIE Ra 99 Mlvis: B (Default) D65, CIE Ra 99 Mlvis: B (Default) D75, CIE Ra 99 Mlvis: B (Default) Others: Ultraviolet (Default) Illuminant A: Cie Ra>97 (Default) LED warm white (Default) LED cool white (Default) Or custom specify Sources stored in the hardware can be reprogrammed by software LEDNavigator-LV	Daylight Options (Exclude UV): D50, CIE Ra 99 Mlvis: B (Default) D65, CIE Ra 99 Mlvis: B (Default) D75, CIE Ra 99 Mlvis: B (Default) Others: Ultraviolet (Default) Illuminant A: Cie Ra>97 (Default) LED warm white (Default) LED cool white (Default) Or custom specify Sources stored in the hardware can be reprogrammed by software LEDNavigator-LV
LED simulated source CCT range accuracy	——	CCT: 2000~20000K CIE Ra: 0~100 Duv: -0.02~+0.02
LED simulated source illumination level	Default:1500 lux or customer specify	Default:1500 lux Further adjust via software. Max up to 2500lux, depending on the illuminant		Illuminance adjustable via software. Max up to 12000lux for D50-D65
LED simulated source stability	±1.5%
Two options for fluorescent tubes	——	CWF (Default) TL84 (Default) TL83(Default)		——
Fluorescent intensity adjustment	——	Yes
Illumination uniformity	80%	85%
Software instrument compatibility	——	Konica Minolta CL500A THOUSLITE FS Spectrometer Jeti Specbos 1211UV Spectroradiometer Spectroradiometer
Electrical parameters	230V/110V 50/60H, 180W / unit Max	230V/110V 50/60H, 300W / unit Max	230V/110V 50/60H, 300W / unit Max	230V/110V 50/60H, 360W / unit Max
Control method	Button switch panel	Touch screen button panel, software control, USB cable		Touch screen button panel, USB cable
External Size (L /W/ H) and weight	700×580×660 mm, 36kg	1020×740×860 mm, 60kg		520×520×850 mm, 40kg
Packing list	Overhead luminaire, viewing cabinet, diffuser, power cord	Overhead luminaire, viewing cabinet, LEDTrans, diffuser, power cord, USB data cable, LEDNavigator-LT software and dongle (optional), THOUSLITE FS spectrophotometer (optional), SDK available on request
Supporting software (optional)	-	The LEDNavigator-LV software contains modules: 1. Blackbody radiation trajectory simulation 2. Simulation of any lighting scene 3. Single channel control 4. Dynamic lighting 5. Fast and accurate feedback

For more information about the lighting system and its many options, please contact us. If you would like to learn more about a complete lab setup, please visit our Image Quality Lab Setup page.
