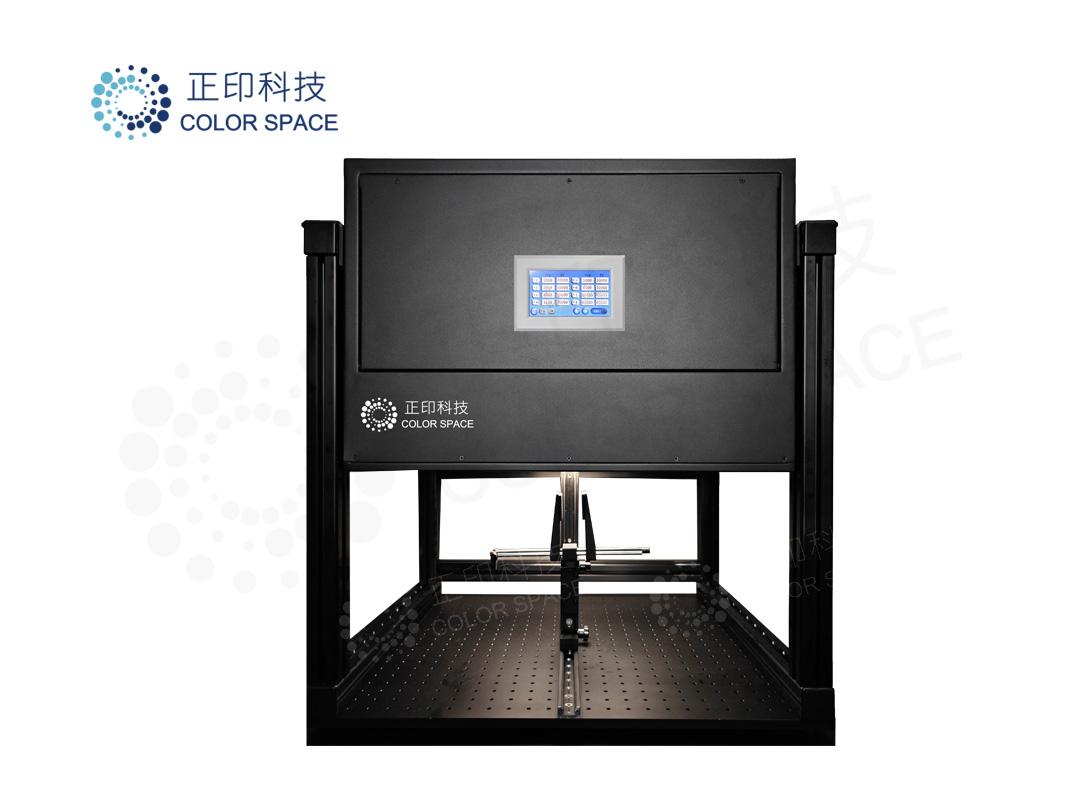

LB3 OTP Tuning Spherical Light Source

Brand：ColorSpace
Model：CS-LB3
Product description: The CS-LB3 spherical light source is designed for OTP camera tuning processes, offering uniform illumination with adjustable color temperature and brightness. Ideal for white balance, AE response, and
INQUIRY

LB3 spherical light source - can be used for shading and colour shading testing of wide angle/fisheye lenses

The CS-LB3 hemisphere light source is a multi-functional lighting system designed specifically for image quality testing, suitable for consumer electronics, automotive imaging, medical imaging, security monitoring and other industries.

The CS-LB3 hemisphere light source can be used in production lines or image quality laboratories to test AWB, AE, uniformity, sensor defect detection, flaws or OTP for wide-field cameras, with a maximum test field of view 220° . Customization of dimension and parameters is supported.


CS-LB3-90	CS-LB3-250

The main features:

· Designed for Wide-Angle and Fisheye Cameras: The CS-LB3 hemisphere light source is suitable for testing various wide-field cameras up to 220° FOV. Ensuring uniform illumination even in extremely wide fields of view.

· Color Temperature Tunable: It supports CCT range from 2300K~6500K , also support customized CCT. It can be used for AWB (Automatic White Balance) testing.

· Sensor Defect and Flaw Detection: It aids in detecting sensor defects, flaws, or OTP, improving product quality.

· Production Line Programming and Laboratory Testing: Suitable for production line programming and IQ (Image Quality) laboratory testing, meeting testing needs in different scenarios. Open API is available.

· Customizable Dimension and Parameters: Supports customization of dimension and parameters based on specific customer requirements, meeting personalized testing needs.

Specification:

Parameters	CS-LB3-D Multi color temperatures version	CS-LB3-DIR Multi color temperatures + infrared version
CCT	2300K ~ 6500K
Illuminance Range	10Lux~10000Lux
Infrared Band	/	850nm / 940nm
Surface Irradiance	/	0~1000uw/cm²
CRI	92~98 (A, D50, D65)
Uniformity	≥95
FOV Range	0 ~ 220°
Sphere Diameter	200mm or 500mm
Opening Diameter	90mm or 200mm, customizable
Control Method	Touch Screen or Light Control software V3.0【RS-485】
Software	Light Control software V3.0【RS-485】: control illuminance, color temperature, and perform automatic calibration. (optional)
API	Support
External Light Meter	Optional
Standard Kit	Hemisphere light source ×1, controller ×1, power line ×1, control line×1
Power	100W
Supply Voltage	AC100~120V / 200~240V; 50/60Hz
Work Environment	Temperature: 25℃ (±10℃); Humidity: 30% ~ 50%
Application	In-car camera, 360° panoramic camera, panoramic surveillance camera, uniformity and defect detection etc.
