ISO 12233:2023 Resolution Test Chart

Brand: ColorSpace
Model：CS-TC088
Product description: The CS-TC088 ISO 12233:2023 Resolution Test Chart is designed in accordance with the ISO 12233:2023 standard for evaluating image sharpness and resolution. Featuring wedge patterns and line structures
INQUIRY

CS-TC088 ISO 12233:2023 Resolution Test Chart

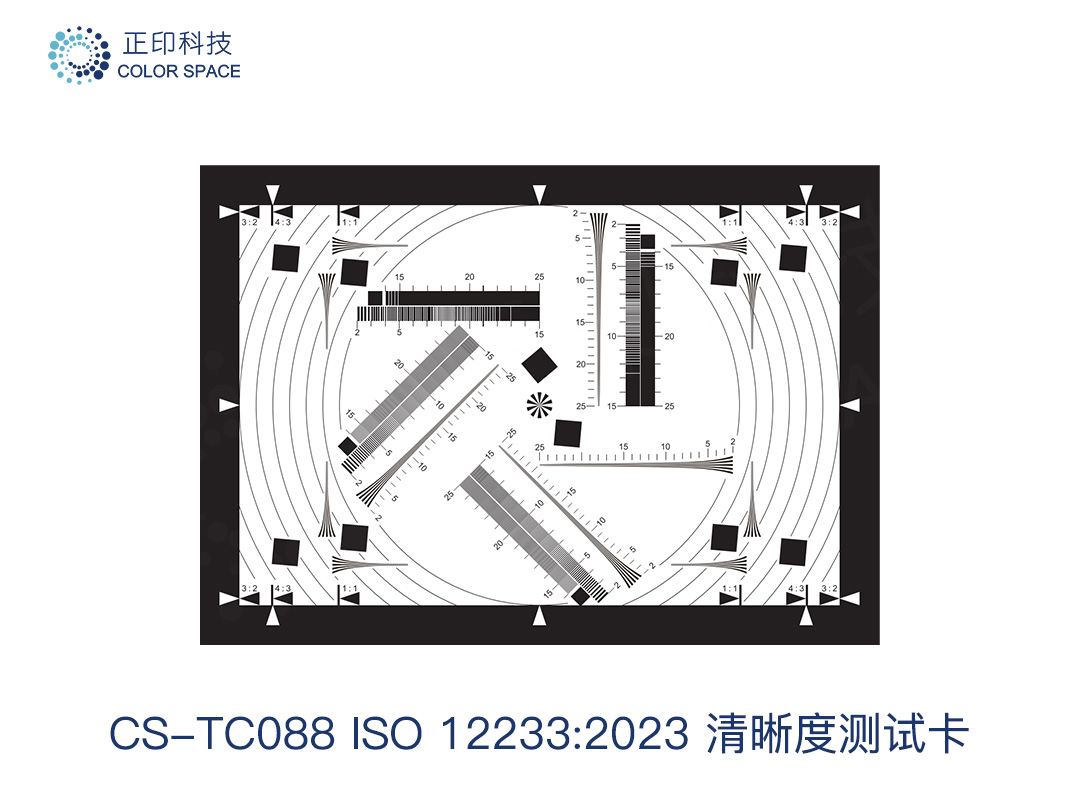

The CS-TC088 ISO 12233:2023 Resolution Test Chart is designed and manufactured in accordance with the ISO 12233:2023 standard for evaluating image sharpness, spatial resolution, and detail reproduction performance of digital imaging systems.

The chart combines wedge patterns and line patterns to support visual resolution analysis, image sharpness evaluation, and imaging performance verification. By examining fine-detail transitions in high-frequency regions, engineers can assess the resolving capability of cameras, lenses, and image processing systems.

Designed to meet 2500-line resolution testing requirements in both center and edge image areas, the chart is suitable for consumer electronics, automotive cameras, security surveillance systems, medical imaging devices, industrial vision equipment, and robotic vision applications.

It serves as a standardized testing tool for product development, performance validation, manufacturing quality control, and imaging system optimization.

ISO 12233:2023 清晰度测试卡

Product Specifications

Parameter	CS-TC088 ISO 12233:2023 Resolution Test Chart
Chart Size	1X	240mm × 340mm
	2X	480mm × 680mm
	4X	960mm × 1360mm
Chart Type	Reflective Chart
Substrate Material	Laminated Photographic Paper	Non-Glare Paper
