ImageMaster® Lab VR – High-Precision MTF Tester for VR Lenses

Brand: Trioptics
Model：ImageMaster® Lab VR
Product description: ImageMaster® Lab VR by TRIOPTICS Germany is a compact MTF and stray light measurement system designed specifically for VR lenses and modules. Ideal for imaging quality testing, distortion analysis, an
INQUIRY

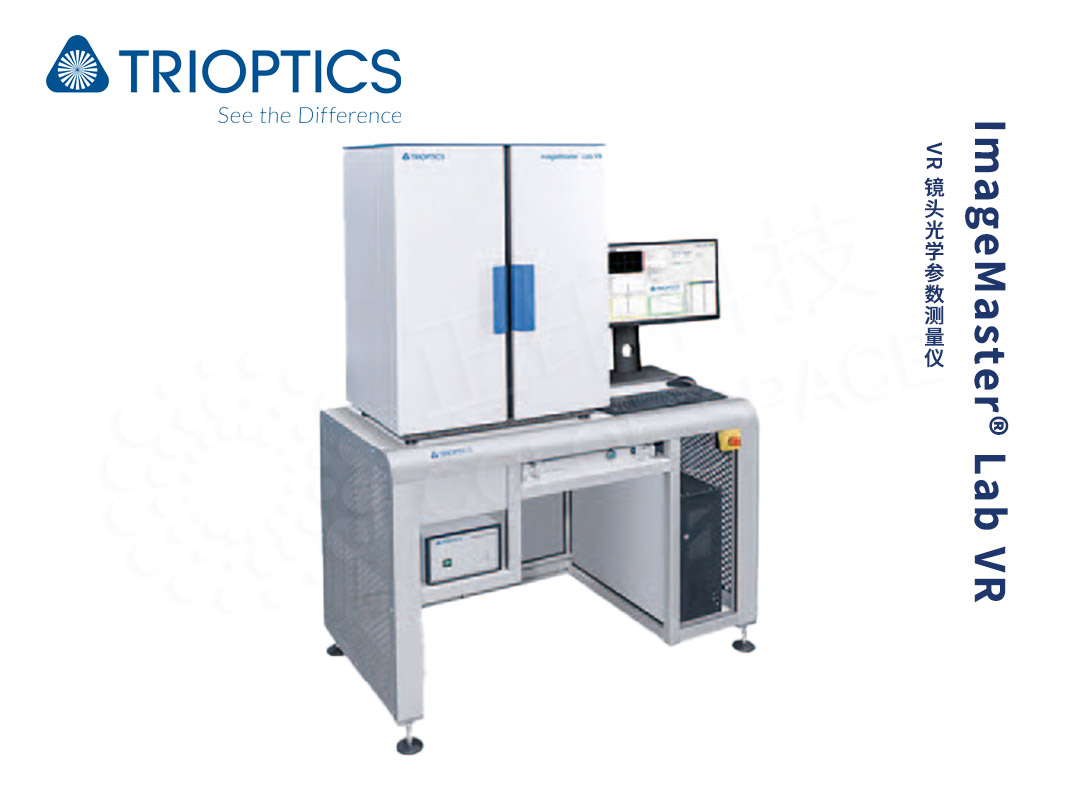

ImageMaster® Lab VR R&D Optical Transfer Function Tester (Specialized for VR Lenses)

Developed by TRIOPTICS Germany, the ImageMaster® Lab VR is a specialized stray light and image quality measurement system designed for virtual reality (VR) lenses and optical modules.

Key Features：

· Vertical design

· Compatible with VR lenses and optical modules

· Integrated compact structure, easy to maintain

· Equipped with OLED display illumination, cold light source, and target system

· Measurement accuracy traceable to international standards

· Modular software with user-friendly interface

· criptable workflow allows for customizable measurements

· Direct measurement result output in report format

Measurable Parameters：

· On-axis Modulation Transfer Function (MTF)	· Effective Focal Length (EFL)
· Off-axis MTF	· Distortion
· Defocused MTF	· ebox
· Stray light (measurable only with built-in display)

Model & Technical Specifications：

Model	ImageMaster® Lab VR
System Configuration	Finite-to-Infinite Conjugate System
Spectral Range	VIS (450nm to 750nm)
Measurable Focal Length	20mm...50mm
Sample Diameter	＜70mm
Sample Length	＜10mm
Sample Weight	＜2kg
Flange Focal Distance	5mm...50mm
Maximum Off-Axis Angle	±60°
Maximum Image Height	±35mm
Spatial Frequency	0...60 lp/°
Stray Light Measurement Accuracy	±5%
Stray Light Repeatability	±3%
MTF Measurement Accuracy	±0.2
MTF Repeatability	±0.005
EFL Measurement Accuracy	±0.2%
EFL Repeatability	＜±0.2%
Distortion Accuracy	±0.7%
Distortion Repeatability	±0.3%
Dimensions (H×W×D)	1600mm×1200mm×700mm
Weight	120kg
System Type	Standalone System
