Lens and Image Sensor Test Equipment

ImageMaster® Cine – High-Precision Measurement and Alignment System for Cinematic Optical Systems

Brand: Trioptics
Model：ImageMaster® Cine
Product description: TRIOPTICS ImageMaster® Cine is a high-precision measurement and alignment system for cine lenses, ideal for long focal length optics and real-time MTF analysis.
INQUIRY

ImageMaster® Cine – High-Precision Measurement and Alignment System for Cinematic Optical Systems

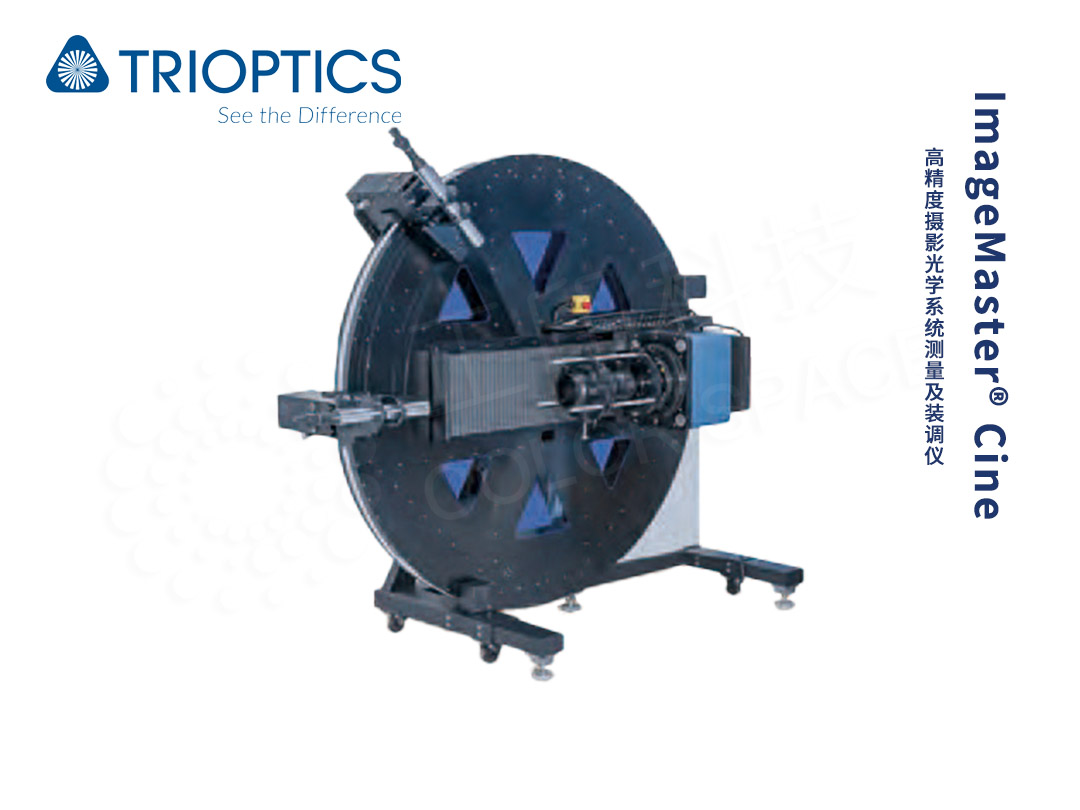

ImageMaster® Cine, developed and manufactured by TRIOPTICS Germany, is a high-precision measurement and alignment system specifically designed for long focal length photographic and cinematic optical systems. It enables accurate evaluation and adjustment of optical performance in professional-grade cine lenses.

Applications：

· Multi-function and multi-field measurement

· Fast MTF performance evaluation

· Integrated lens calibration software

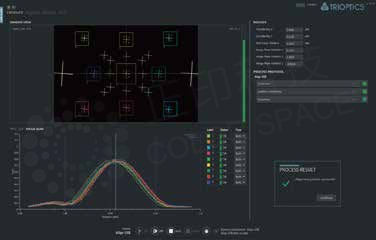

· Real-time image processing

· Customizable user-defined test workflows

· Export of measurement results in PDF or MS Excel formats

Measurement Parameters：

· On-axis Modulation Transfer Function

· Off-axis MTF

· Defocused MTF

Model and Technical Specifications：

Specification	ImageMaster® Cine
Spectral Range	450nm...750nm
Measurement Orientation	Horizontal / Vertical
Focal Length Range	12mm...250mm
Flange Focal Distance	15mm...75mm
Clear Aperture	5mm...80mm
Number of Telescopes	2...5mm
Field of View	±50°
MTF Measurement Accuracy	±0.03MTF
MTF Measurement Repeatability	±0.01MTF
Sample Diameter	5mm...100mm
Sample Length	5mm...135mm
