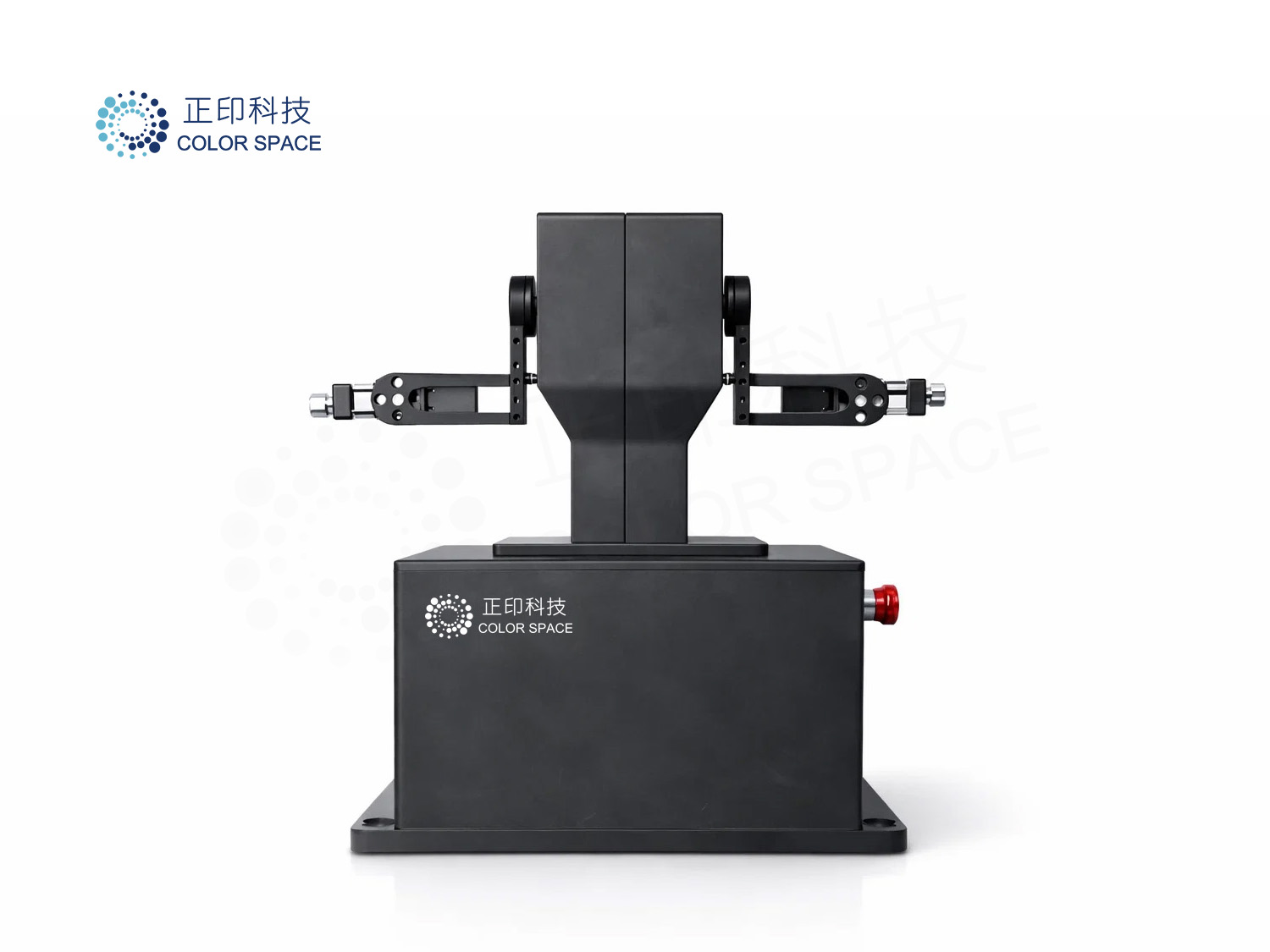

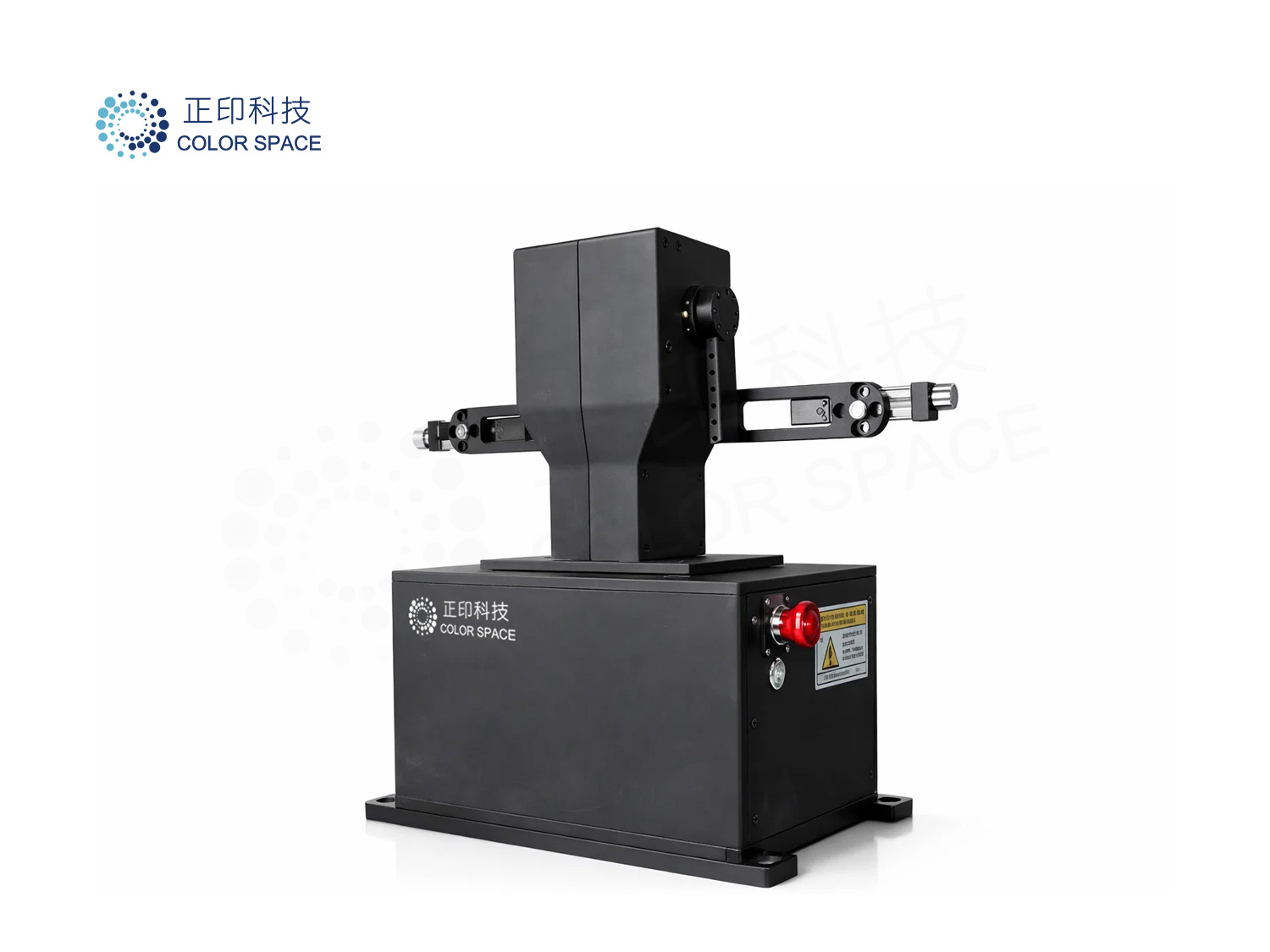

CS-HSD4 OIS 2-Axis Vibration Test System

The CS-HSD4 OIS 2-Axis Vibration Test System is a motion simulation platform designed for evaluating the dynamic performance of imaging devices. It can be used for Optical Image Stabilization (OIS), Electronic Image Stabilization (EIS), image stabilization algorithm validation, and inertial sensor testing.

The system provides one translational axis (X-axis) and one rotational axis (θX Pitch), enabling realistic simulation of vibration, movement, and orientation changes encountered in real-world operating environments.

By accurately controlling vibration frequency, motion amplitude, and movement profiles, engineers can evaluate image stability, motion response, and stabilization performance under repeatable test conditions.

Key Features

• Dual-Axis Motion Simulation：Supports X-axis translation and pitch rotation, allowing independent or synchronized motion control.
• Accurate Motion Control：Equipped with servo motors and high-resolution encoders for precise and repeatable motion performance.
• Adjustable Test Parameters：Frequency, amplitude, and motion profiles can be configured to meet different testing requirements.
• User-Friendly Software：Includes touchscreen operation and PC software with real-time motion monitoring and waveform display.

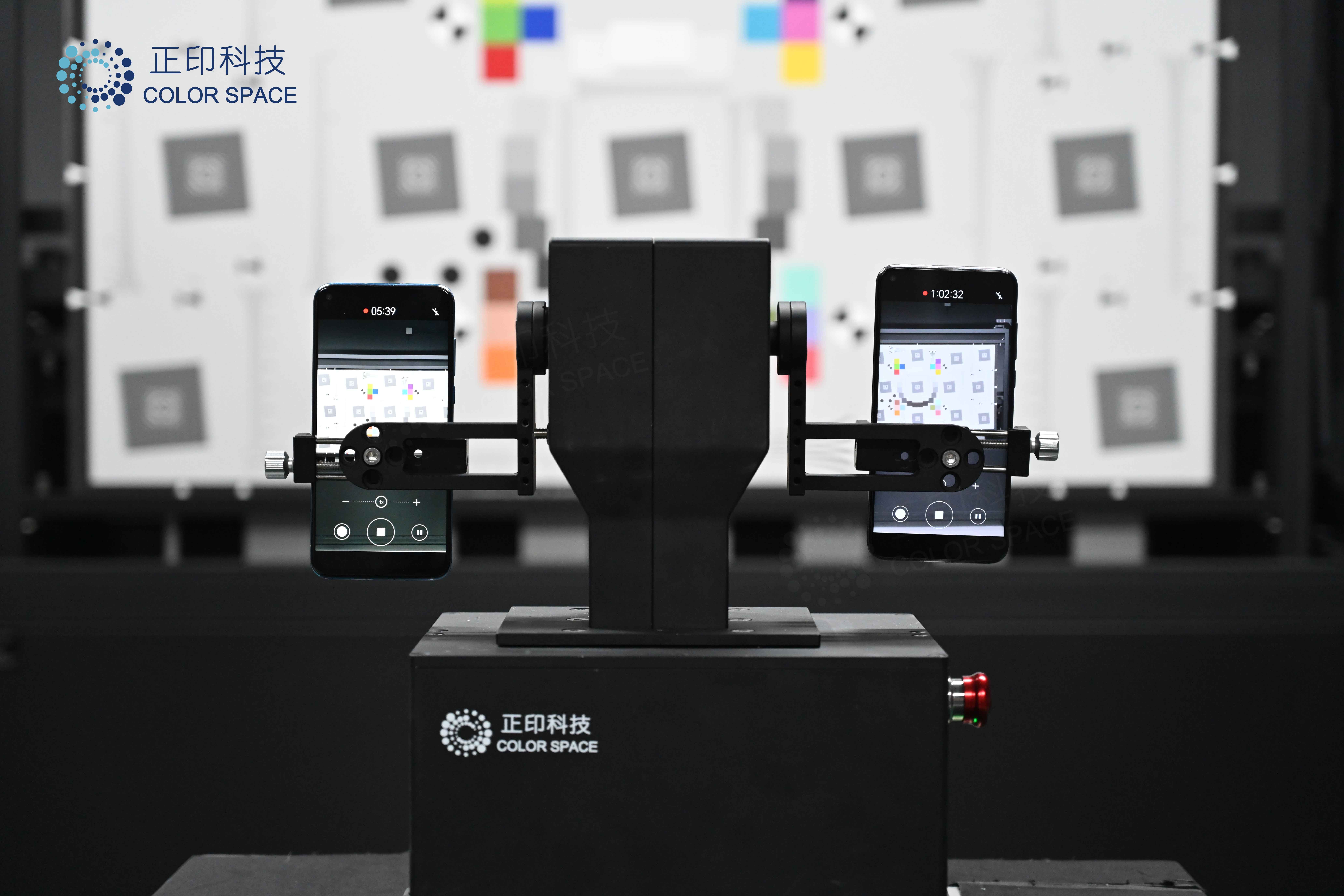

• Flexible Payload Capability：Designed to support test samples up to 2 kg per side for a wide range of applications.
• Integrated Safety Features：Includes software limits, hardware limits, emergency stop, and power-off braking functions.


Core Motion Axes

Degree of Freedom Type	Axis	Motion Description
Translation	X Axis	Horizontal linear movement (left and right)
Rotation	θX (Pitch)	Rotation about the X-axis, similar to a nodding motion

Control Software

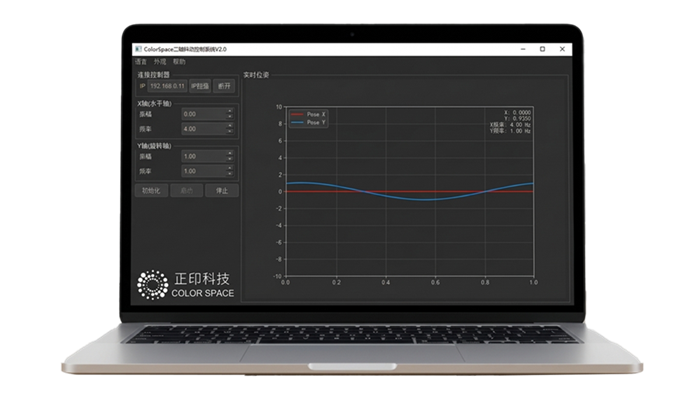

Software Interface

Technical Specifications

【Reserve a Lab】For more information about related products and testing services, please contact：sales@colorspace.com.cn
