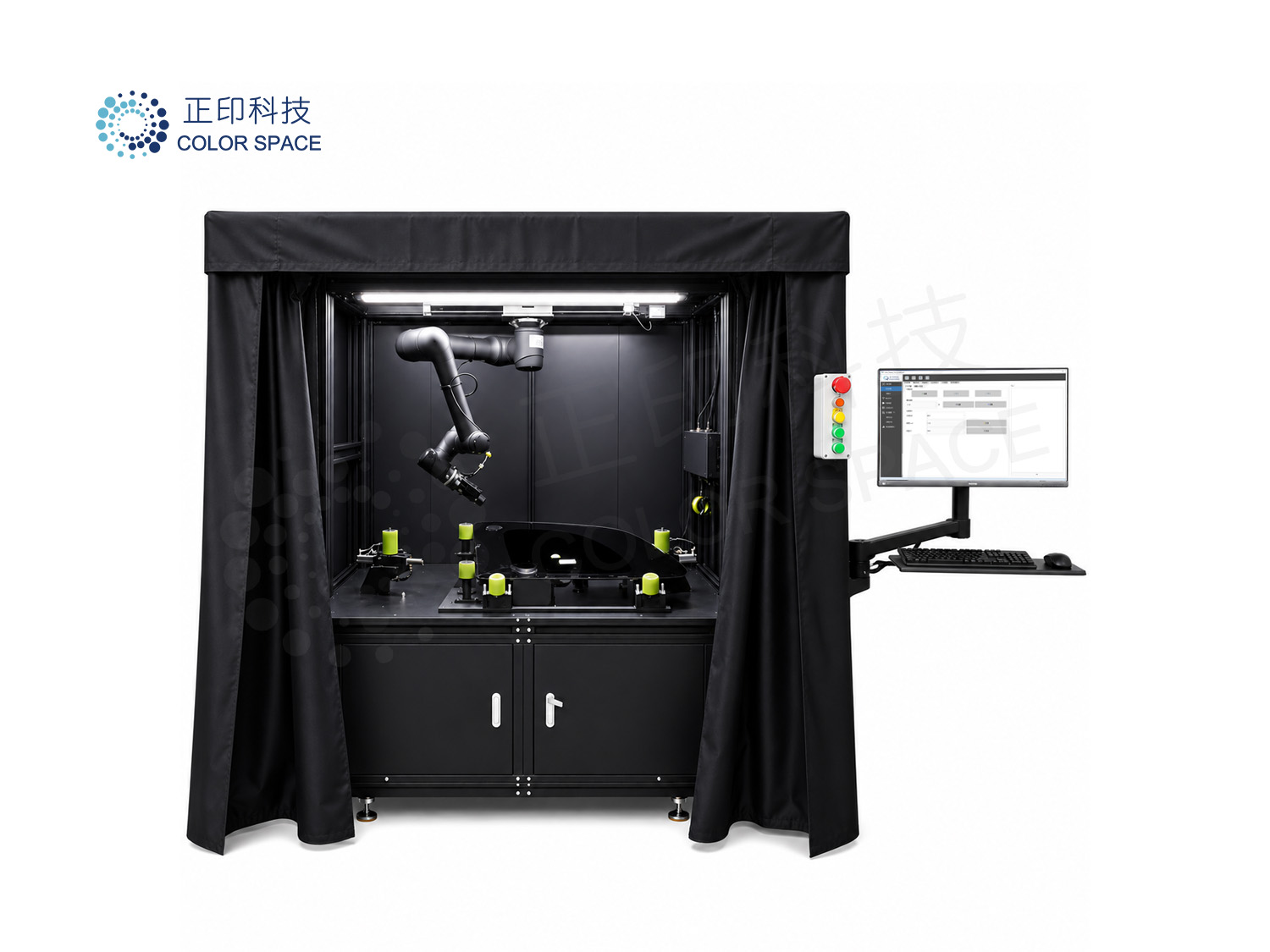

CS-XT-C/Q D01 ADAS Front/Side Windshield MTF/SFR & Secondary Image Deviation Test System

The CS-XT-C/Q D01 ADAS Front/Side Windshield MTF/SFR & Secondary Image Deviation Test System is designed for imaging performance testing of automotive windshields and vehicle camera modules in an integrated configuration. It evaluates imaging characteristics such as MTF/SFR and secondary image deviation when a camera module captures test targets through a vehicle's front or side windshield.

The system integrates a windshield mounting and angle adjustment mechanism, camera module positioning device, 6-DOF robot, collimator, image acquisition module, and image analysis software. Based on predefined test procedures, it can perform camera module position and orientation adjustment, different field-of-view settings, image acquisition, and test data analysis.

By integrating the windshield, camera module, test target, and image analysis processes, the system can be used for ADAS camera module and windshield compatibility verification, automotive windshield R&D testing, sample evaluation, and quality control.

Applications

· ADAS Camera R&D Testing：Used for imaging performance testing during the development of ADAS camera modules. Different camera positions, orientations, and test fields of view can be configured to evaluate MTF/SFR performance when the camera captures images through the windshield, providing test data for camera module and windshield matching and design verification.
· Automotive Windshield R&D and Verification：Used for automotive windshield development and sample verification. The system can test the optical performance of windshields with different structures, materials, thicknesses, and relevant process conditions, and analyze their effects on camera imaging performance and secondary image deviation.
· Camera Module and Windshield Compatibility Testing：Used to evaluate the installation relationship between vehicle camera modules and windshields. The windshield mounting angle, camera position, and camera orientation can be adjusted according to the test plan to evaluate imaging performance when the camera captures images through the windshield.

· Product Quality Control：Can be used for product testing by vehicle manufacturers, automotive glass manufacturers, and vehicle camera manufacturers, enabling test results to be compared across different samples or process conditions.

Key Functions

· Automated Robot Positioning：A 6-DOF robot combined with a motion axis adjusts the position and orientation of the camera module and switches between predefined test positions according to the test procedure. Test coordinates and orientations can be recorded, and the robot can return to predefined positions based on the test program.

· Windshield Mounting and Angle Adjustment：The system is equipped with a dedicated windshield mounting and angle adjustment mechanism. A flexible clamping module secures the test windshield, while the mounting angle can be adjusted according to test requirements. Appropriate clamping methods and fixtures can be configured according to the structure and dimensions of different test samples.

· Collimator-Based Target Simulation：The system includes a collimator assembly consisting of a collimator, controller, and related components, together with test targets and a secondary image test chart. The collimator position and target conditions can be configured according to the test procedure to establish the required test field of view and target conditions.

· Automated Image Acquisition：The robot, collimator, and image acquisition module are integrated with the automated testing software. The system can perform test position adjustment, target setting, and image acquisition according to predefined test procedures.

· Automated MTF/SFR and Secondary Image Deviation Analysis：After image acquisition, the image quality analysis software performs MTF/SFR and secondary image deviation analysis and outputs the corresponding test data and test report.

Product Specifications

Relevant Standards

1、GB 15084-2022 — Motor vehicles—Device for indirect vision—Requirement of performance and installation

2、ISO 16505:2019 — Road vehicles — Ergonomic and performance aspects of Camera Monitor Systems — Requirements and test procedures
