OptiCentric® LensAlign

Brand: Trioptics
Model：OptiCentric® LensAlign
Product description: The OptiCentric® LensAlign fully automatic optical lens gluing system is designed for fully automatic lens gluing with centre deviation measurement, automatic adjustment of alignment and automatic glu
INQUIRY

OptiCentric® LensAlign fully automatic optical lens gluing system - single lens to single lens gluing

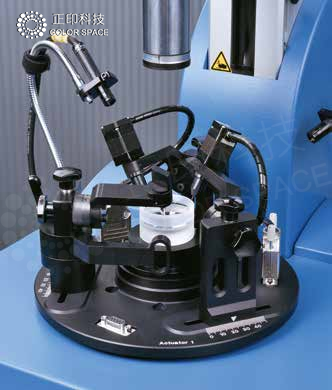

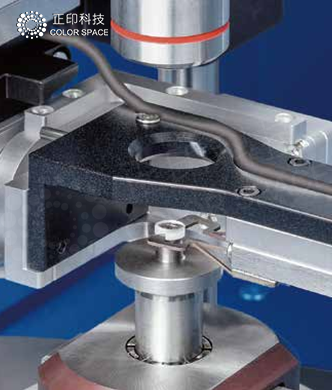

The OptiCentric® LensAlign fully automatic optical lens gluing system is designed for fully automatic lens gluing with centre deviation measurement, automatic adjustment of alignment and automatic gluing. The system is based on the "through-axis" principle and can be extended with any TRIOPTICS centre deviation measuring instrument equipped with an air bearing turntable.

Application

· Non-contact measurement of centration errors and air gaps in optical systems
· MTF measurement of medium-sized samples in R&D environments
· Compatible with NUV, VIS, NIR, MWIR, and LWIR spectral ranges

Model and technical parameters:

Model	OptiCentric® LensAlign 2D Air	OptiCentric® LensAlign 2D Standard	OptiCentric® LensAlign 2D Advanced	OptiCentric® LensAlign 4D
Measurement accuracy	±0.2μm	±0.2μm	±0.2μm	±0.2μm
Gluing accuracy	±1μm	±2μm	±1μm	±1μm/±5°
Adjust alignment time*	30s	10s	60s	60s
Lens size	5...50mm	5...90mm	5...100mm	1...100mm
