OptiCentric® UP-Bonding

Brand: Trioptics
Model：OptiCentric® UP-Bonding
Product description: The TRIOPTICS OptiCentric® UP Bonding system is based on the OptiCentric® UP, a large-aperture centring system. It is suitable for measuring the centre deviation of optical systems with large aperture
INQUIRY

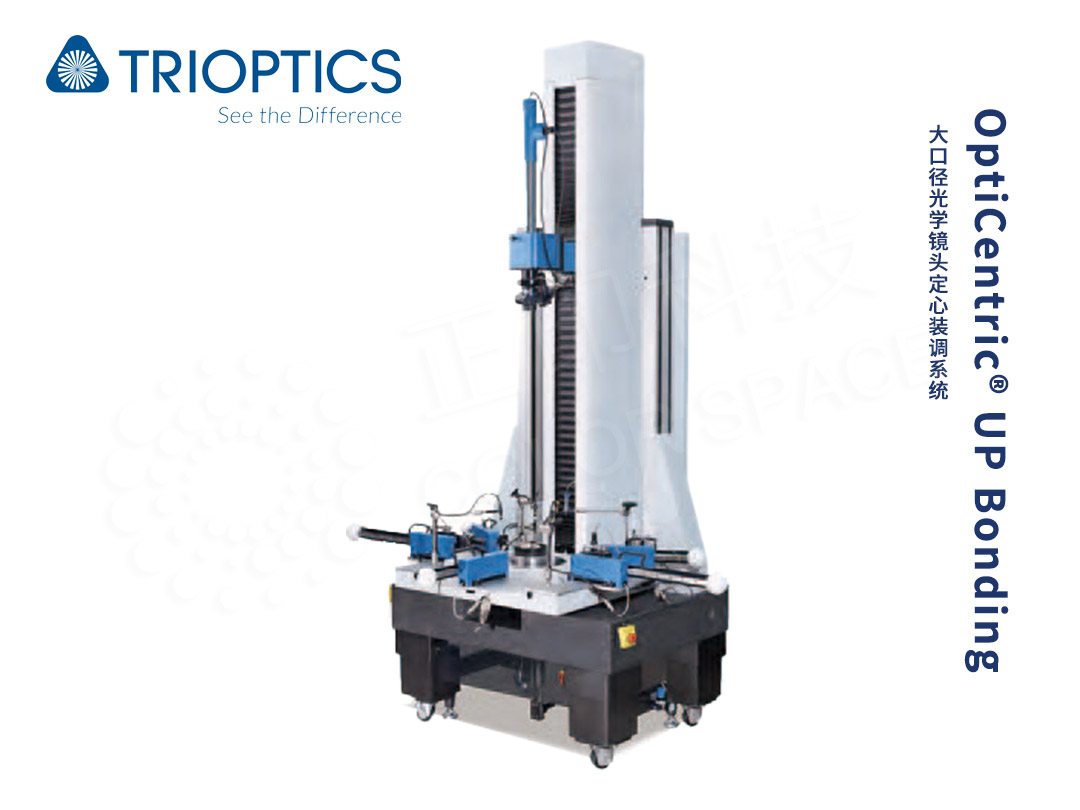

OptiCentric® UP Bonding-Large diameter optical lens centring and mounting system

The TRIOPTICS OptiCentric® UP Bonding system is based on the OptiCentric® UP, a large-aperture centring system. It is suitable for measuring the centre deviation of optical systems with large apertures, long heights and high weights and for automatic centring and mounting.

大口径光学镜头定心装调系统

Applications

· Automatic alignment of large optical assemblies
· Telescopic and aerospace lens system manufacturing
· High-precision bonding for optical subassemblies
· Ideal for large and heavy optics (up to 1500 kg, 800 mm diameter)

Model and technical parameters:

Model	OptiCentric® 300 UP Bonding	OptiCentric® 600 UP Bonding	OptiCentric® 800 UP Bonding
Centration measurement accuracy	±0.1μm或±1″	±0.1μm或±1″	±0.1μm或±1″
Centration measurement repeatability	±0.1μm或±1″	±0.1μm或±1″	±0.1μm或±1″
Measurable lens radius of curvature range	±2000mm	±2000mm	±2000mm
Centering and alignment accuracy	优于2μm	优于2μm	优于2μm
Alignment adjustment time	约15s	约15s	约15s
Maximum sample diameter	400mm	600mm	800mm
Maximum sample weight	450Kg	1000Kg	1500Kg
Air-bearing rotary table diameter	300mm	600mm	800mm
Maximum sample height	1000mm	1500mm	1500mm
Air-bearing table radial runout	≤0.1μm	≤0.15μm	≤0.15μm
Air-bearing table axial runout	≤0.1μm	≤0.15μm	≤0.15μm
