Combi DX-1 MB Series Resolution Test Charts

Brand：DSC Labs
Model：CS-CDX1
Product description: DSC Combi DX1 resolution charts for camera image quality and anti-aliasing evaluation. 16:9/4:3 support, up to 2100 pxl resolution.
INQUIRY

Combi DX1 Resolution Test Chart Series (MultiBurst & MultiBurst Square Wave, Compatible with 16:9 / 4:3 Formats)

The Combi DX1 resolution test chart series is specifically designed to evaluate the spatial resolution and anti-aliasing performance of imaging systems. It is widely used in broadcast video assessment, industrial camera testing, and lens performance verification. With a black-on-white pattern design and support for resolutions up to 2100 pixels (approximately 1200 TV lines per picture height, LPPH), it meets the analysis requirements of HD to ultra-HD imaging systems.

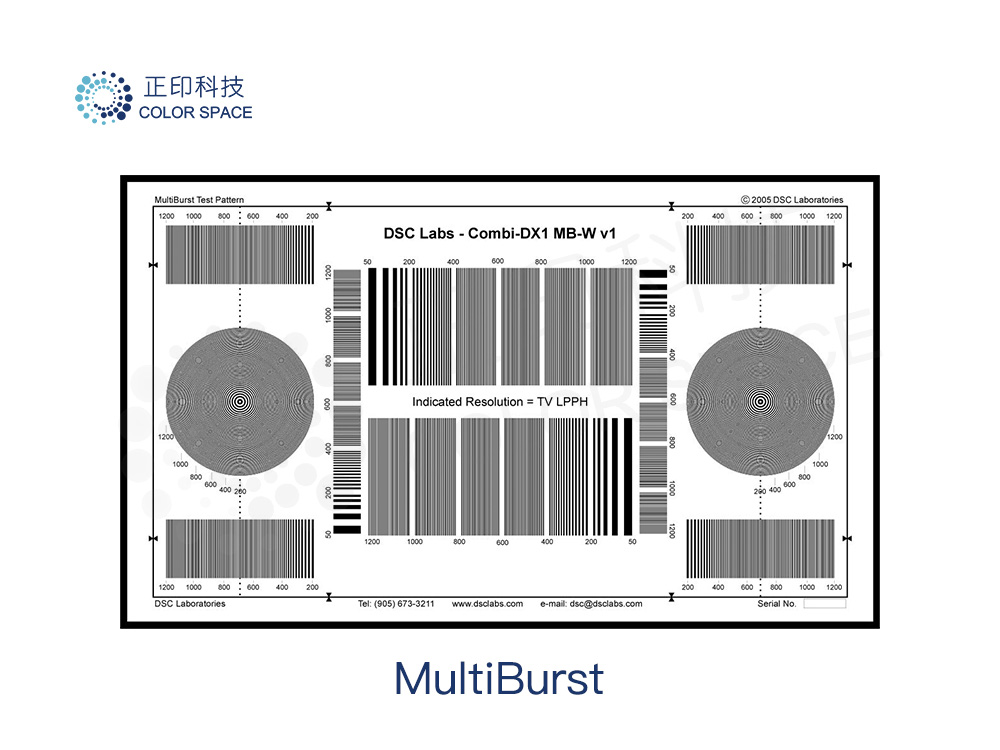

Combi DX1 – MultiBurst | Supports Multiburst 16:9/4:3 (Black on White)

· Resolution gratings up to 2100 Pxl – 1200 TV LPPH
· Zone plates also up to 2100 Pxl for checking resolution characteristics and anti-aliasing

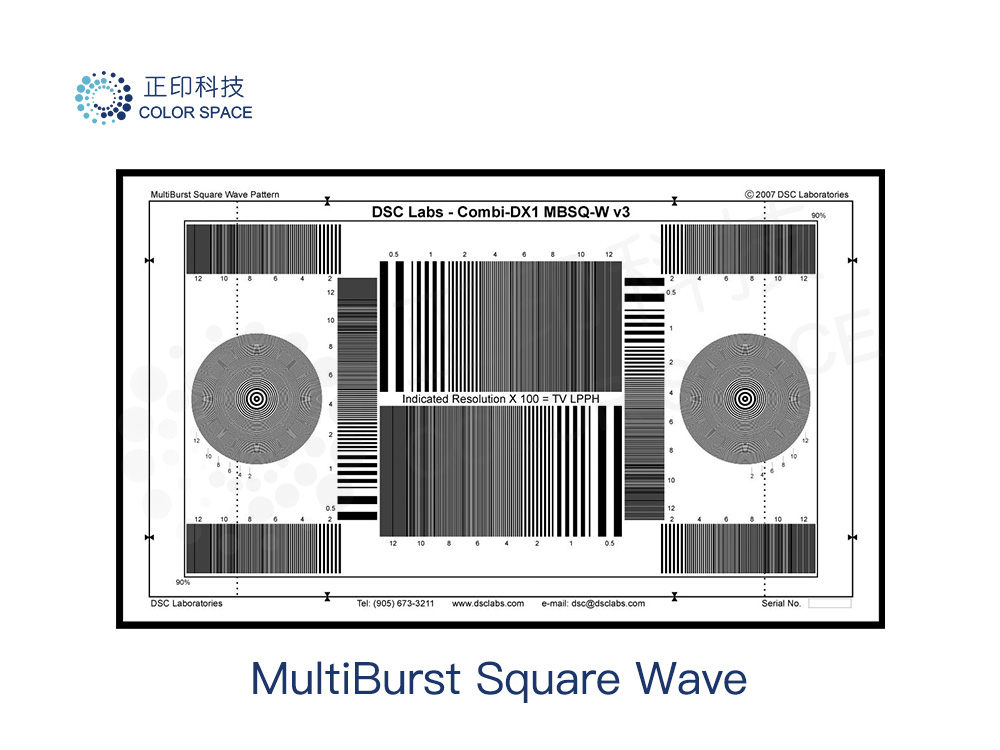

Combi DX1 – MultiBurst Square Wave | Suppots Multiburst 16:9/4:3 (Black on White)

· Central horizontal and vertical resolution gratings
· Continuous resolution sweeps from 50 to 1200*, with identifier every 100 TV LPPH
· Spaces every 200 TV LPPH – simplify analysis when using a waveform monitor
· Corner gratings – useful for checking lens performance
· Zone plates – helpful in identifying aliasing

Specification	Combi DX1 – MultiBurst	Combi DX1 – MultiBurst Square Wave
Model	CS-CDX1-5W	CS-CDX1-29W
Format Ratio	16:9 / 4:3	16:9 / 4:3
Dimensions	13.5 × 8''（approx. 34.3×20.3cm）	13.5 × 8''（approx. 34.3×20.3cm）
Grating Type	sine ware	square wave
Resolution Range	up to 2100Pxl（approx. 1200TV LPPH）	50-1200TV LPPH(continuous sweep)
