Resolution Test Charts

  • MultiBurst Test Chart
MultiBurst Test Chart

MultiBurst Test Chart

  • Brand：DSC Labs
  • Model：CS-MB(5)
  • Product description: The MultiBurst resolution test chart features central horizontal and vertical sweep patterns ranging from 50 to 1200 TV LPPH, with zone plates and corner gratings for edge analysis. Ideal for evaluati
  • INQUIRY

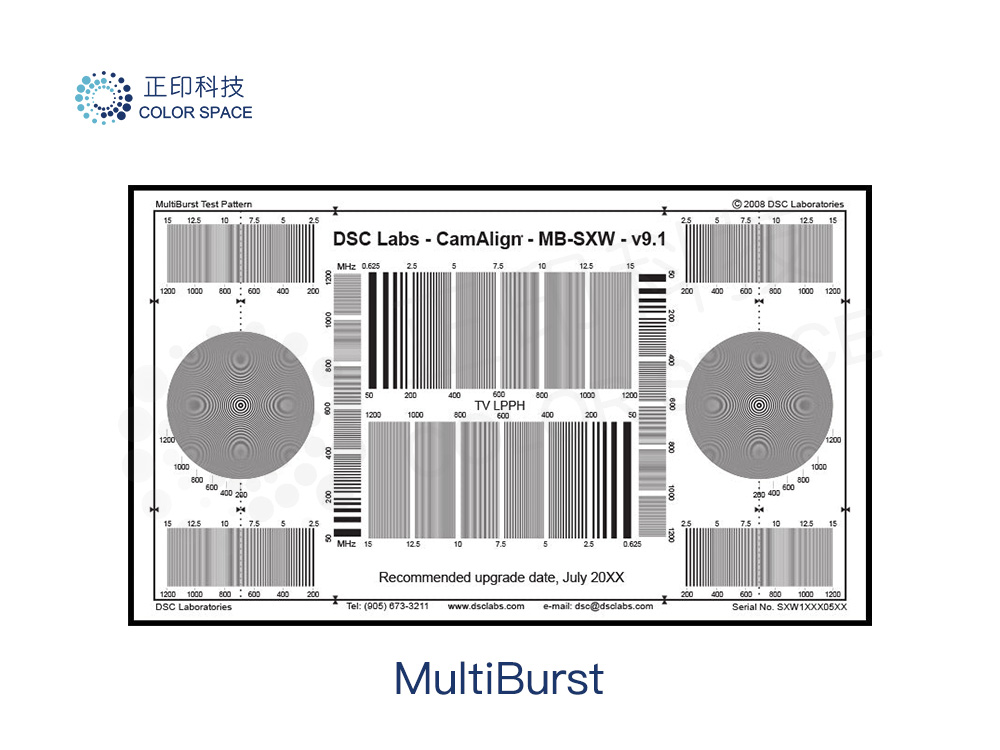

MultiBurst

  • Central horizontal and vertical resolution gratings.
  • Continuous resolution sweeps from 50 to 1200 with identifier every 100 TV LPPH
  • Spaces every 200 TV LPPH – simplify analysis when using a waveform monitor
  • Corner gratings – useful for checking lens performance.
  • Zone plates – helpful in identifying aliasing.


MultiBurst_DSC Labs


Specifications：

Model
 Size
CS-MB(5)-JW 17×10''（43.18 cm × 25.4 cm）
CS-MB(5)-SW
 21.3×13''（54.10 cm × 33.02 cm）
CS-MB(5)-SRW
 24×14.7''（60.96 cm × 37.34 cm）
CS-MB(5)-XW
 40×24''（101.6 cm×60.96 cm）
CCS-MB(5)-SXW
 51.5×3.5''（130.81cm×77.47 cm）


【Reserve a Lab】For more information about related products and testing services, please contact：sales@colorspace.com.cn
