200F Series Automatic Focometer

Brand：200F series
Product description: The 200F Series Automatic Focometer utilizes an area-array camera and MTF auto-focus technology to deliver high-precision measurements of effective focal length, transmissive and reflective centration
INQUIRY

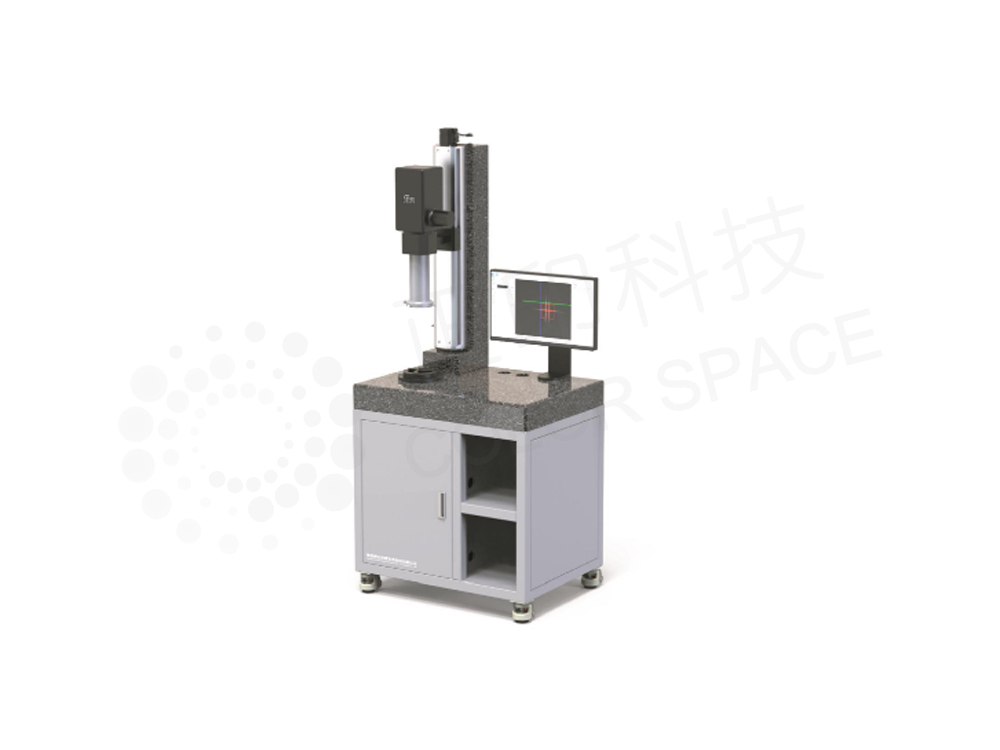

200F Series Automatic Focometer

A digital focal length measuring instrument is an optical metrology device used to measure the effective focal length of lenses.It adopts a digital area-array detector to receive optical images in place of the traditional visual observation system.Through image processing algorithms, it accurately extracts feature information of the test target, delivering higher measurement accuracy.The motorized focusing mechanism ensures that the sharpest focal plane can be located each time, free from human subjective interference.The intuitive software interface makes the whole measuring process simpler and more efficient.

Automatic Focometer

Product Features

· Compact and integrated overall structure

· Industrial area-array camera for real-time display of optical images

· Sub-pixel image processing technology for sub-pixel level target positioning accuracy

· MTF-based auto-focus for precise focal plane positioning

· Replaceable and expandable fixture interface for easy function switching

Product Functions

· Effective Focal Length (EFL)

· Transmissive / Reflective Centration

· Radius of Curvature / Back Focal Length (with linear encoder)

Product Specifications

Item		200F500LD	200F1000LD	200F2000LD
Measuring Mode		Reflective / Transmissive
Centration Range	Reflective	±2 ~ ±500（curvature）	±2 ~ ±1000（curvature）	±2 ~ ±1000（curvature）
	Transmissive	±2 ~ ±500（focal length）	±2 ~ ±1000（focal length）	±2 ~ ±2000（focal length）
Centration Accuracy		±1°
EFL	Measuring Range (mm)	±2 ~ ±500	±2 ~ 1000	±2 ~ ±2000
	Measuring Accuracy	±2 ~ ±25@0.1% ~ 0.3%
		±25 ~ ±500@0.03% ~ 0.1%
		±500 ~ ±2000@0.1% ~ 0.3%
Travel (mm)		500mm	1000mm	1000mm
Element Diameter		120mm
Axis System		V-groove rotary fixture / Manual air bearing spindle / Automatic air bearing spindle
Light Source		Halogen cold light source / LED light source
Standard Configuration		Automatic Focometer ×1
		Computer set ×1 (PC, monitor, keyboard, mouse)
		Measurement software (USB drive) ×1
