Low Light Level Night Vision Integrated Test System

Product description: Low Light Level Night Vision Integrated Test System provides full-parameter test for field of view, gain, resolution and more. This night vision test system supports military inspection, factory accep
INQUIRY

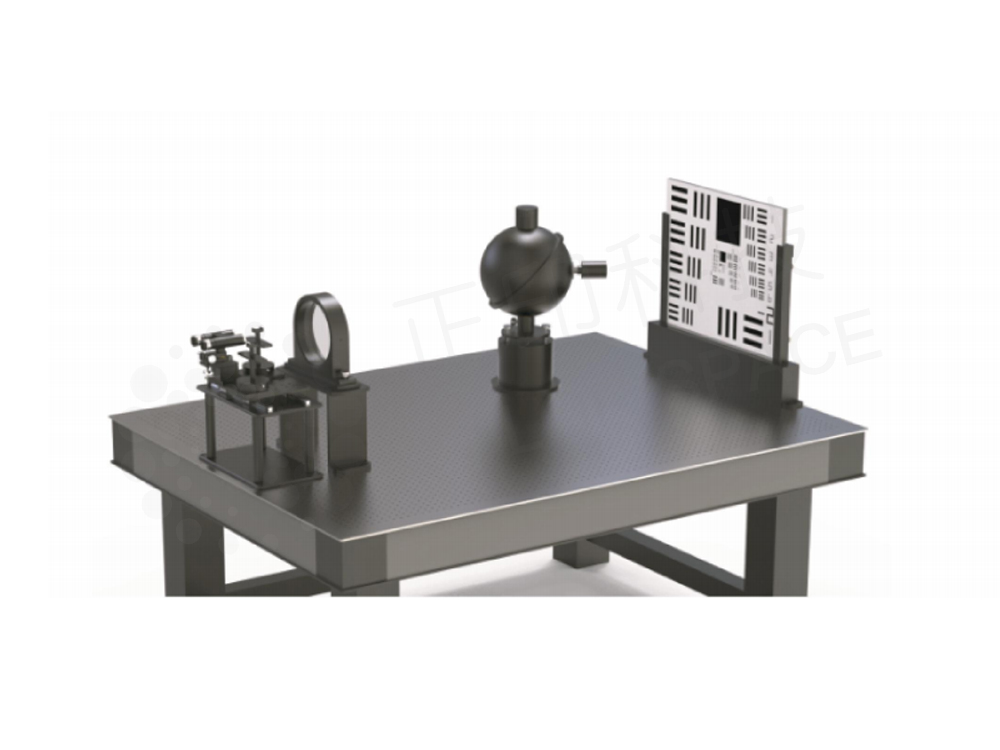

Low Light Level Night Vision Integrated Test System

The Low Light Level Night Vision Integrated Test System is mainly used to test the performance of low-light night vision products. It can measure parameters of night vision devices including field of view, magnification, brightness gain, low-light brightness and brightness distribution of calibrated scenes, optical axis parallelism, resolution, focusing range and focusing distance.

It is widely applied to self-inspection, military inspection, delivery acceptance of low-light night vision series products, as well as field maintenance for troops.

微光夜视综合检测系统

Product Parameters

Parameter	Low Light Level Night Vision Integrated Test System
Illuminance Control Range	10^-11x ~ 10^-41x
Light Source Color Temperature	2856K ± 50K
Resolution Target	Complies with USAF1951 reflective resolution target
Contrast of Resolution Target	85% ~ 90%，55% ~ 60%，35% ~ 40%，25% ~ 30%
Resolution Measurement Range	（0.5-5）mrad
Collimator Specification	Aperture ≥ 200 mm, Focal Length ≥ 2000 mm, Parallelism ≤ 1′
Field of View Test Range	Max. horizontal FOV ≥ 50°, Max. vertical FOV ≥ 50°
Optical Axis Parallelism (Binocular)	Horizontal divergence ≤ 20′~2.3°, Horizontal convergence ≤ 60′, Vertical ≤ 30′
Brightness Measurement Range	10^-3cd/m²~ 100cd/m²

Optional Components

Parameter	Value
Low Light Illuminance Module	Measuring Range	1x10^-1lux ~ 1x10^-6lux	Light-Receiving Diameter	Φ20mm
Low Light Illuminance Module	Instrument Display (LCD)	4.7-inch touch color display	Instrument Interfaces	RS232和USB
