Dioptrometer Series

Product description: Dioptrometer series for eyepiece diopter range testing, zero position deviation measurement, imaging quality evaluation and optical calibration applications. Available in Model 02 and Model 025 config
INQUIRY

Dioptrometer Series

The Dioptrometer is designed for measurement and calibration of eyepiece diopter parameters in optical instruments. It can be used for diopter range testing, zero-position verification, deviation assessment, and as a pre-lens for imaging quality and resolution evaluation.

This series includes Model 02 and Model 025 Dioptrometers for laboratory, production alignment, and optical system testing applications.

Functions include:
1、Measurement of eyepiece diopter range, zero position and diopter accuracy
2、Testing of eyepiece diopter and zero-position deviation
3、Pre-lens application for optical imaging quality evaluation

4、Auxiliary use in resolution testing and optical calibration

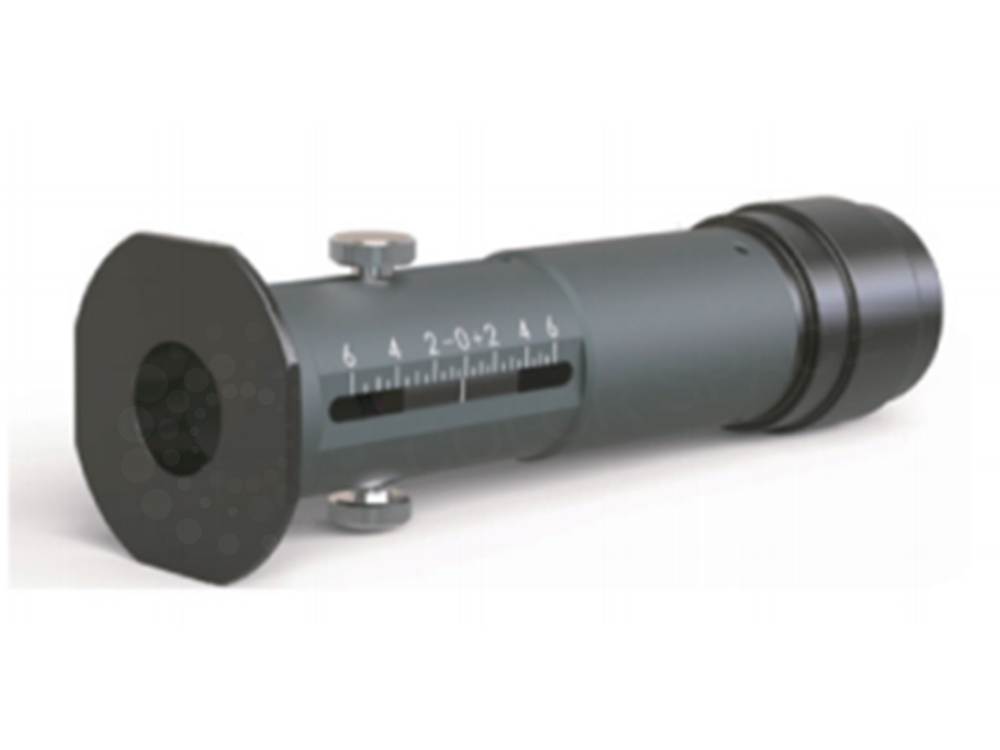

Model 02 Dioptrometer	Model 025 Dioptrometer

Technical Specifications

Parameters	Model 02	Model 025
Objective Focal Length	80mm	50mm
Magnification	4^X	2.5^X
Field of View	≥10°	≥6°
Measuring Range	± 2.5 SD	±6 SD
Exit Pupil Diameter	4.5mm	6mm
Effective Aperture	Ø 12mm	Ø 14mm
Resolution	≤7.5"	≤12.3"
Minimum Diopter Division	0.25 SD	0.5 SD
Eyepiece Diopter	±5 Diopters	±5 Diopters
Eye Relief	18mm	18mm
