Magnification Meter

Product description: Magnification Meter designed for measuring exit pupil diameter, exit pupil distance and magnification parameters in telescope systems, suitable for optical R&D, manufacturing inspection and laboratory
INQUIRY

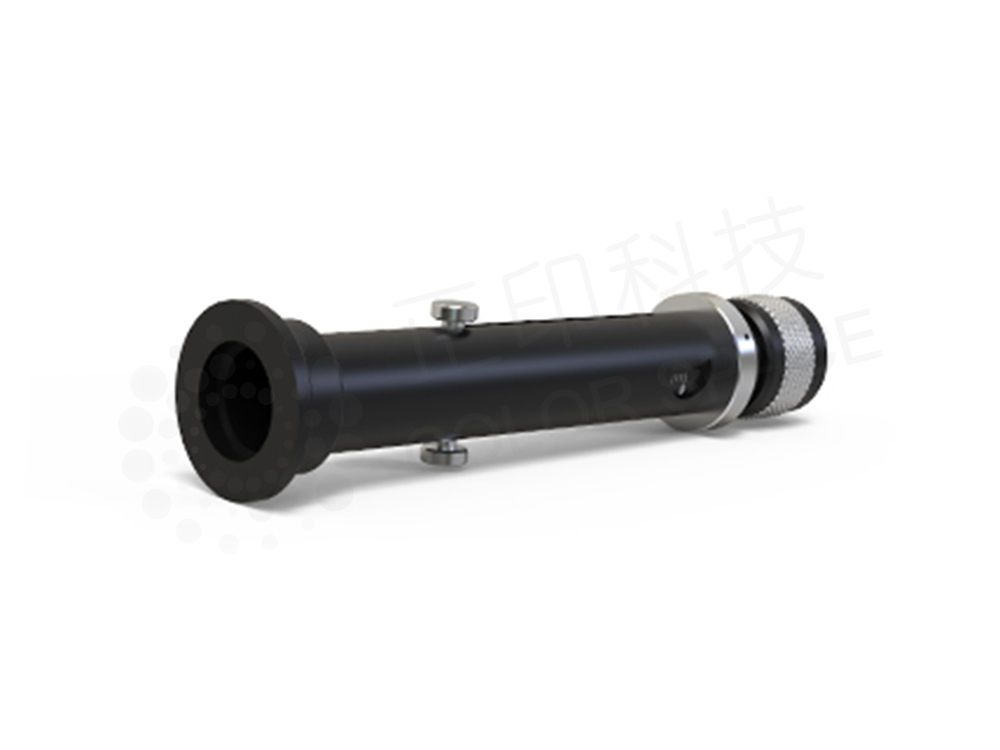

Magnification Meter

The Magnification Meter is designed for measuring exit pupil diameter and exit pupil distance of telescope systems, while also supporting magnification parameter testing. It is commonly used in optical manufacturing, R&D and laboratory applications.

Magnification Meter

Technical Specifications

Specifications	Magnification Meter
Objective Focal Length	40mm
Magnification	25^X
Eyepiece Magnification	12.5^X
Objective Perpendicular-axis Magnification	2^X
Reticle Scale Range	0-10mm
Eyepiece Diopter Adjustment Range	± 5Diopters
Reticle Scale Value	0.05mm
Tube Scale Range	0-60mm
Exit Pupil Diameter	Ø 3.3mm
Exit Pupil Distance	20mm
