High-Precision MTF Testing System--ImageMaster® Universal

Brand: Trioptics
Model：OptiCentric®
Product description: ImageMaster® Universal by TRIOPTICS offers high-precision MTF testing for all optical systems across UV to LWIR. Modular design and traceable accuracy.
INQUIRY

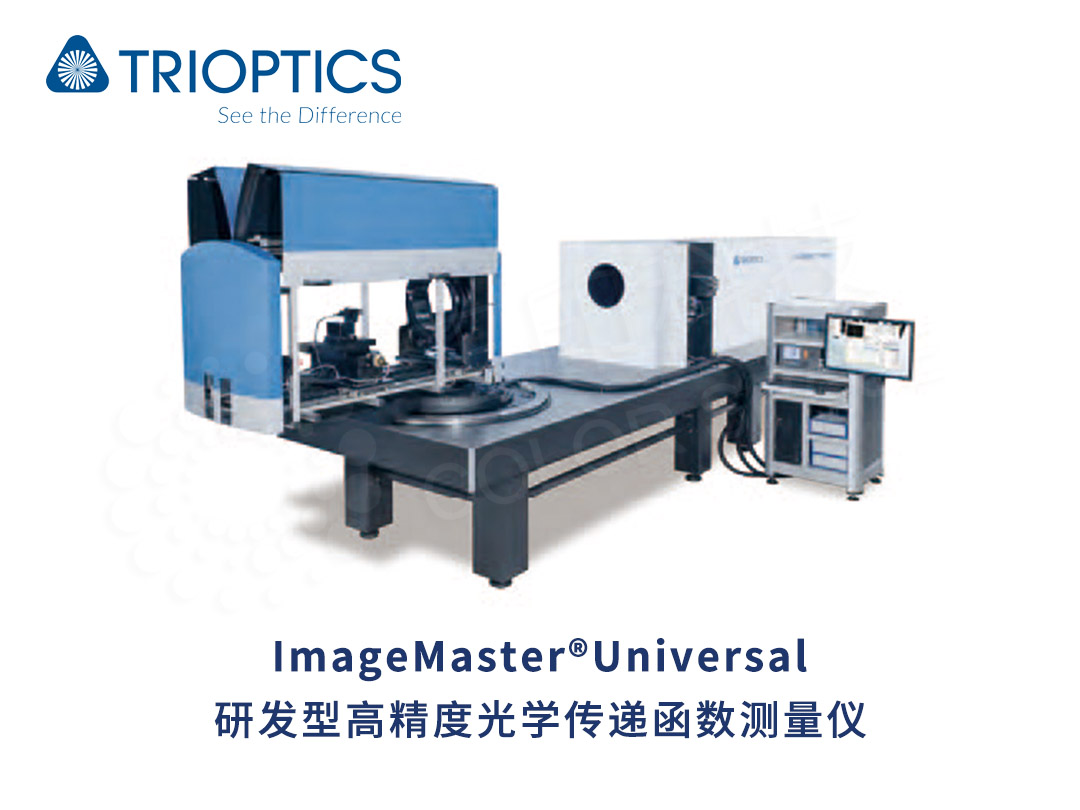

ImageMaster® Universal High-Precision MTF Measurement System

The ImageMaster® Universal is the flagship optical performance testing system in the TRIOPTICS ImageMaster® series. It enables high-precision MTF and optical parameter measurement for virtually all optical system types, including refractive, reflective, and folded designs. The system covers UV, visible, NIR, SWIR, MWIR, and LWIR wavelengths, making it ideal for aerospace, defense, and research applications.

Key Features：

· Horizontal layout with fully automated measurement

· Supports straight, L-shaped, U-shaped, and folded optical paths

· Modular system with integrated transport design

· Off-axis parabolic collimator for full-spectrum performance

· Durable aluminum housing for light shielding and wind protection

· Quick-swap modular target and detector units

· Traceable measurement accuracy to international standards

· Modular software design with user-friendly interface

· Script-based automation for customized testing

· Direct report generation output

Measurable Parameters：

· On-axis MTF	· Off-axis MTF	· Defocus MTF	· Effective Focal Length (EFL)
· Phase Transfer Function (PTF)	· Line Spread Function (LSF)	· Point Spread Function (PSF)	· Chief Ray Angle
· Relative Transmission	· Relative Illumination	· Field of View	· Distortion
· Astigmatism	· Chromatic Aberration	· Depth of Focus	· Field Curvature
· F-number
